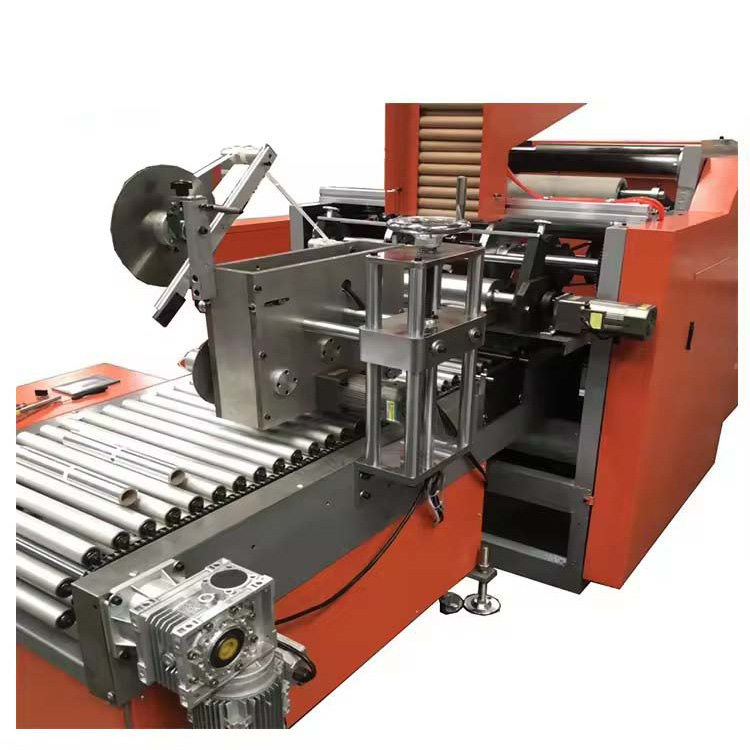

Automatic aluminium foil rewinding machine with labeling function

  • PPD-AFL450

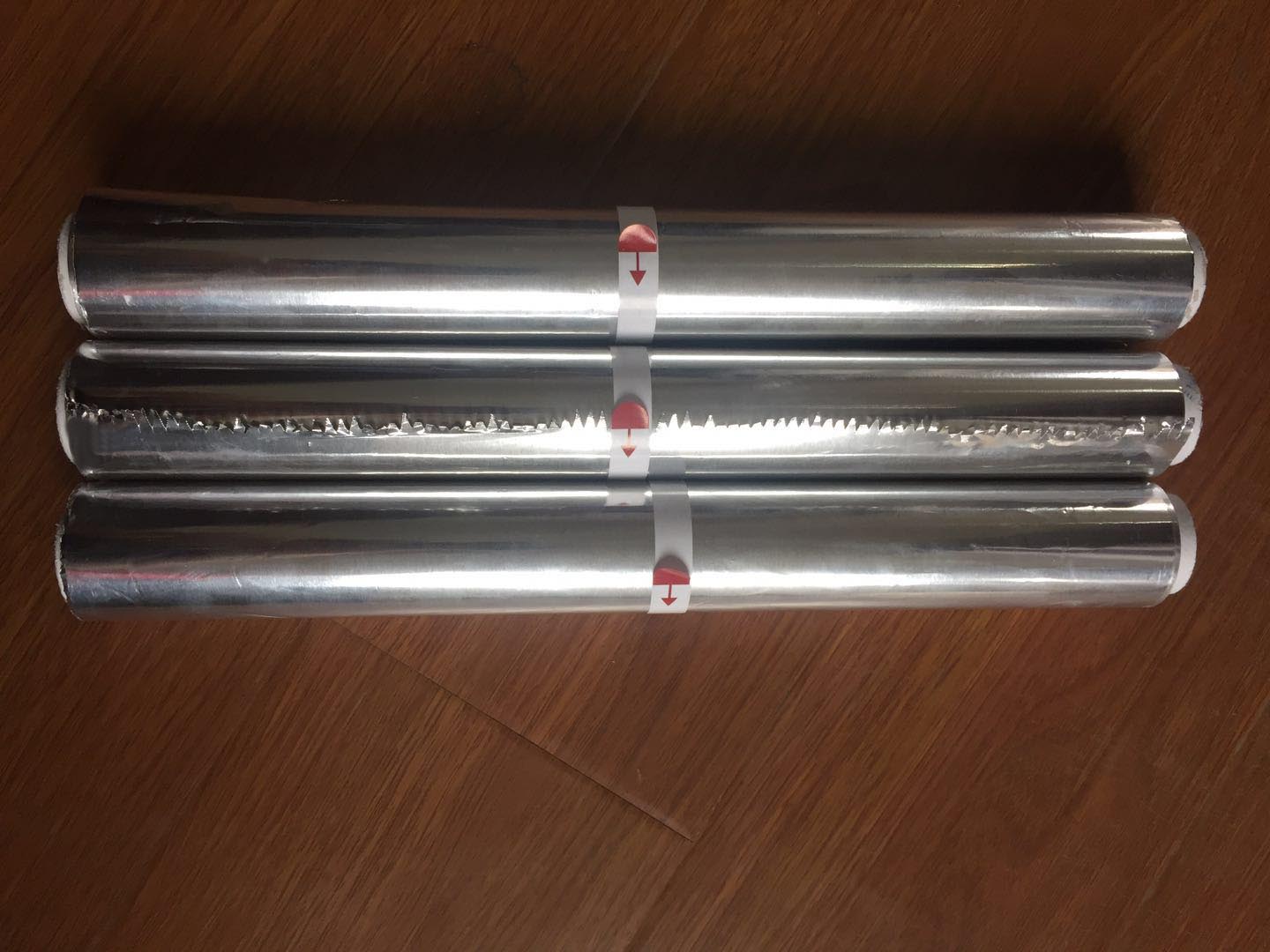

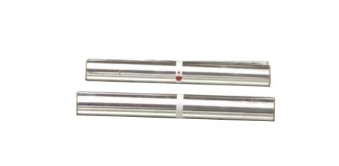

  • Automatic aluminium foil rewinding machine with labeling function is latest designed model to produce the small aluminium foil,kitchen foil,household foil with label sticker,it also can produce the small baking paper roll,wax paper roll,silicon paper roll etc..
    Machine is with 4 shafts rewinding system,that makes it possible to rewind product rolls max 100 meters.
    Machine is with automatic paper core change system,easy to use,high output.

Video

Features:

1:Siemens PLC/touch screen,easy to setting the data,user friendly.

2:Automatic meter counting,once reach the setting length,machine stop.

3:Automatic 4 shafts paper core change system,high output.

4: Addtional labeling function,can produce the aluminium foil rolls,kitchen foil rolls,household foil rolls with label sticker as buyer requirement.


Machine data:

Machine name:Automatic aluminium foil rewinding machine with labeling function

Machine model:PPD-AFL450

Parent roll width:max 450mm(adjustable)

Parent roll diameter:max 800mm

Parent roll inner diameter:3/6inch(option)

Parent roll loading way:Air shaft

Baby roll inner diameter:25/30/38/40mm(option)

Baby roll length:max 100meters

Speed:max 150m/min

Voltage:220/380/415/450v,3ph

Power:4 kw

Net weight:1850kg

NOTE:Different sizes can be customized as buyer requirement.






Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
