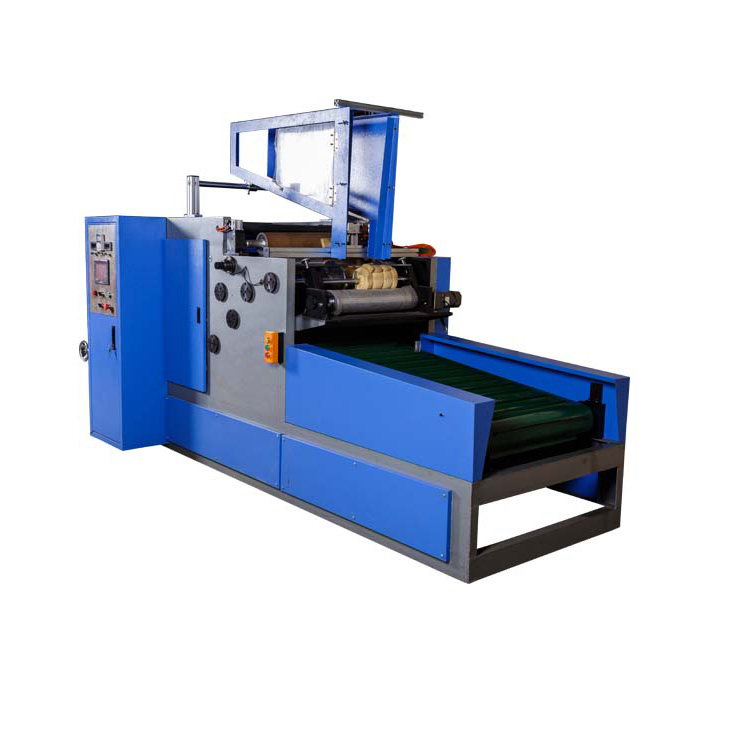

Automatic aluminium foil rewinder

  • PPD-AAR450

  • Automatic aluminium foil rewinder is new designed model to rewind the jumbo roll aluminium foil,baking paper to produce small product aluminium foil and baking paper rolls.
    Machine is equipped with 4 shaft type rewinding system,that makes it possible to rewind product rolls max 100 meters.
    Machine is easy to operate and high efficiency,can hold heavy duty production for 24/7 operation.

Video

Features:

1: Adopts high quality Frequency unit for speed control, the speed will show in the touc screen.

2:PLC touch screen,easy to operate,simple operation,automatic meter counting

2:Automatic 4 sfhat paper core change system, the speed is rapid,which greatly provides production efficiency and effectively reduces labor cost,and production costs will be reduced.

3: The PLC/Touch screen selece for Simens brand.other electrical parts adopt top brands, the product has great stability and high production precision.


Machine data:

Machine name: automatic aluminium foil rewinder

Machine model:PPD-AAR450

Max mother roll width:450mm(adjustable)

Max mother roll diameter:800mm

Mother roll inner diameter:76/152mm option

Material loading:Air shaft

Product roll inner diameter:25/30/38/40mm option

Product roll length:maximum 100meters

Speed:150m/min max

Voltage:220/380/415/450v,3ph

Power:4 kw

Net weight:1700kg

automatic aluminium foil rewinder-9.jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
