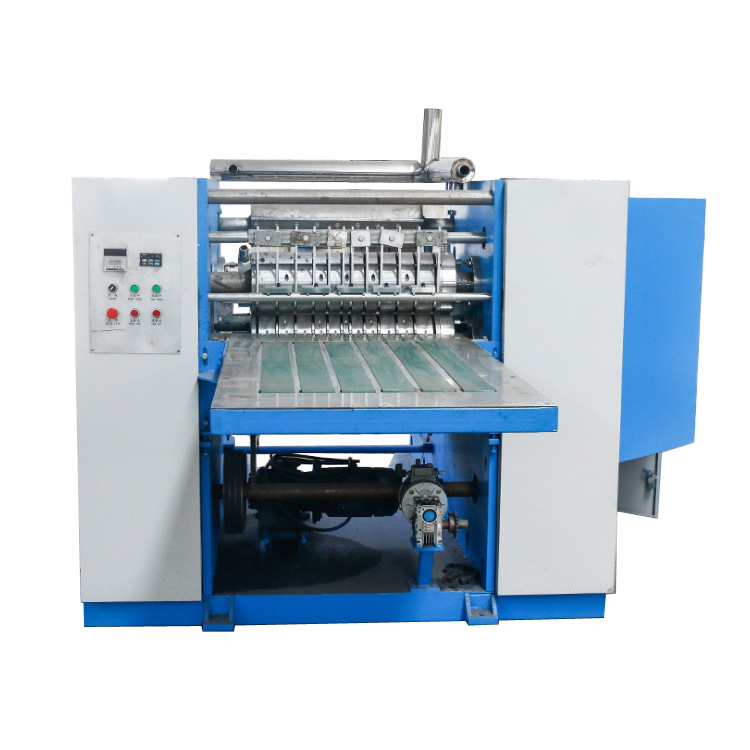

Pop Up Foil Sheet Machine

  • PPD-PUF610

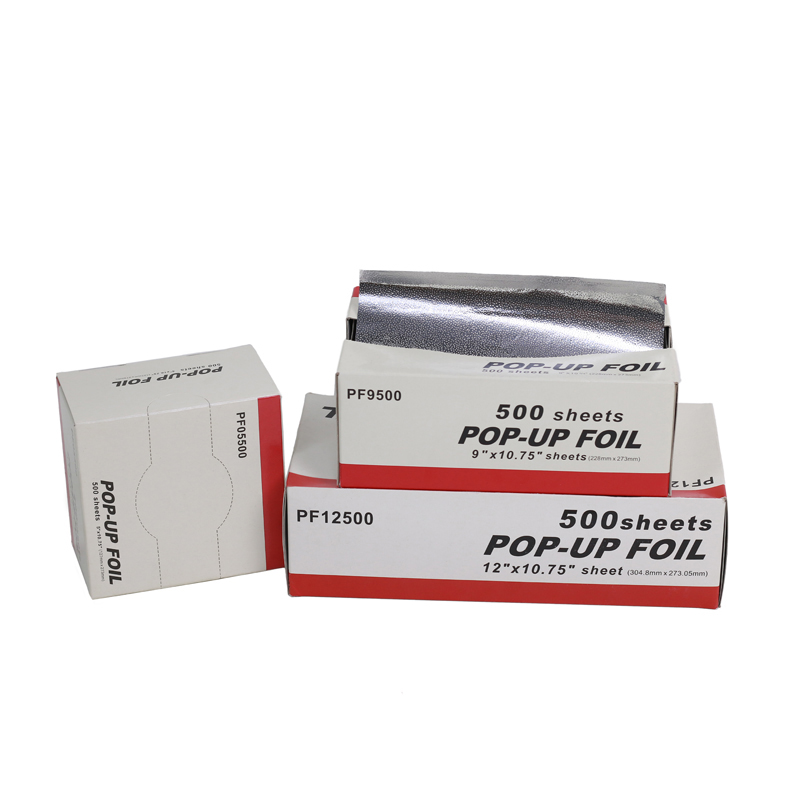

  • Pop up foil sheet machine is ideal of cutting and folding of cooking foil,kitchen foil,BBQ foil,and make the food wrapping more convenient.

    Main features:
    1. Automatic counting of the entire column output.
    2. Front steel oblique knife cut, vacuum adsorption folding
    3. Magnetic powder brake gas rising shaft discharge;
    4. Steel on the rubber roller embossing device, the pattern is obvious;
    5. It adopts variable frequency motor drive and the speed is adjustable.

Technical Data:

Applicable raw materials: aluminum foil paper

Raw material core size: 3inch

Raw material OD: max600mm

Raw material width:max 600mm

Finished product dimensions: L:273mm × W:300 or 225mm

Finished product folding size: L:136.5mm ×W: 300 or 225mm

Finished folding shape: V-folded cross-folding, continuous extraction

Embossing device: steel to steel roller, steel to polyurethane roller

Processing capacity: 800 sheets / min

Total power required: 380V, 50HZ, 10.5kw

Machine weight: 3500kg

Dimensions: 4500 × 1500 × 1850m

NOTE:Different sizes can be customized





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
