Aluminium Foil Machine

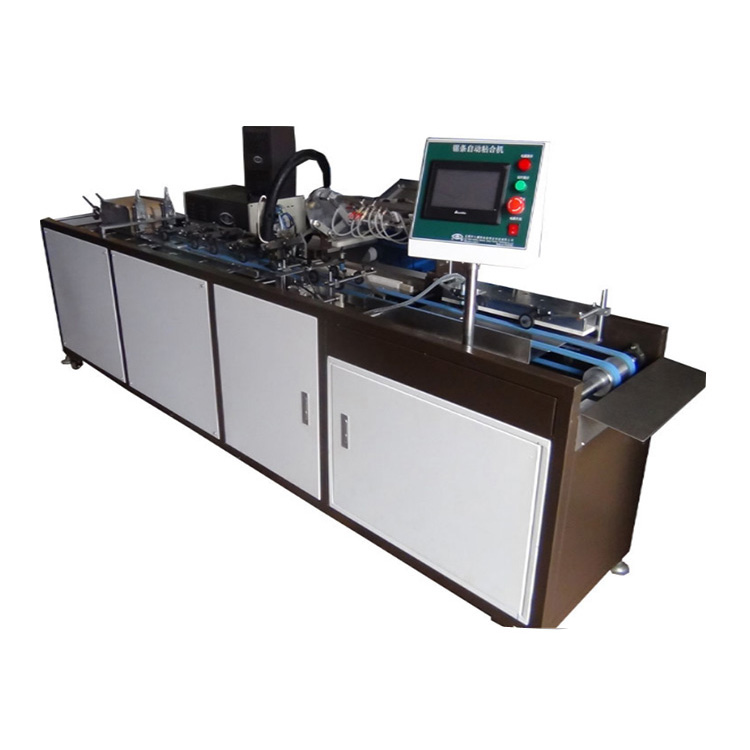

Automatic metal saw blade attaching machine
-
PPD-MSBA50
-

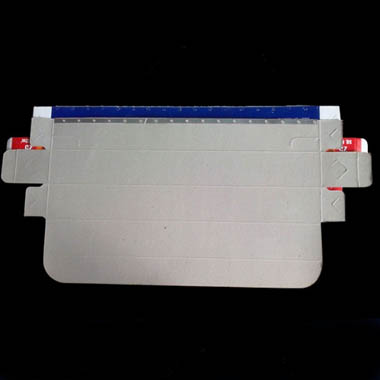

Automatic metal saw blade attaching machine is automatic machine specially developed by our company to fix the metal saw blade on the aluminum foil roll box, baking paper roll box and cling film roll box etc..
Automatic machine, saving labor costs.
Different size of box are acceptable.
Video
Features:
1: PLC touch screen control, adjustment and setting of parameters, simple and clear.
2: Stainless steel square pass welding, stainless steel plate bending, Machining Parts Cold-drawn Precision Machinining,machine is stable and durable
Machine data:
Machine name: Automatic metal saw blade attaching machine
Machine model:PPD-MSBA50
Machine speed: 20-25pc/ min - 55pc/ min
Saw blade length: ≦340mm,
Saw blade width:9mm
The position of the blade is ≦90mm from the side of the tray
Saw position：＋0.3mm
Box size (without tongue)：300mm ≦ Length ≦ 340mm , 250mm ≦ Width ≦ 380mm
Voltage: 220V
Total power:4kw
Machine dimension: 3500*1500*1500mm(L*W*H)
NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.
