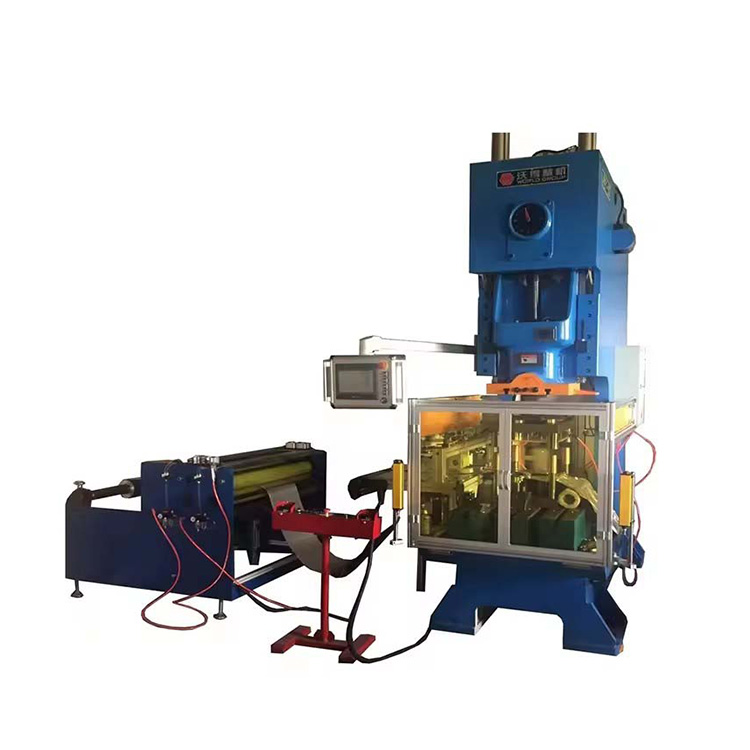

Aluminium Foil Container Production Machine

  • PPD-45T

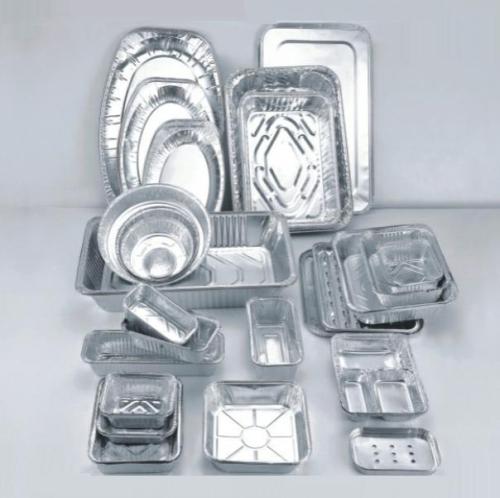

  • Aluminium foil container machine is a production line for production of aluminium foil container,aluminium tray , disposable lunch dish etc.
    Machine includes feeding machine,high accuracy press,product collecting table.
    The mould of aluminium foil container is optional for buyers.

    Production precess:
    Aluminum Foil Raw Material Feeding-- --Punching(Mould)---
    Products Collecting----Packaging



Model

PPD-45T

PPD-63T

PPD-80T

Nominal Pressure
  (KN)



450



630



800

Slide Block Strok
  (mm)

100-260mm

120-260mm

140-260mm

Slide Stroke Per Minutes(/min)



70-50



70-50



60-45

Maximum Die Set Height(mm)

270-400

310-450

325-450

Die Set Height Adjustment(mm)

60mm(2.36)

70mm(2.76)

80mm(3.15)

Slide Bottom Size
   (mm)

410*340mm

480*400mm

560*460mm

Stemhole Size(mm)

φ60*60mm

φ60*65mm

φ60*75mm

Bolster Surface Size
  (mm)

810*440/990*750mm

870*520/1000*800

1000*600/1200*800

Total Power
   (KW)

5.5

5.5-7.5

7.5-11

Weight(kg)

3800-4500

5500-6300

8000-9000

Machine

Dimension (mm)

1440*1080*2300mm

1610*1200*2500mm

2000*1300*2900mm





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
