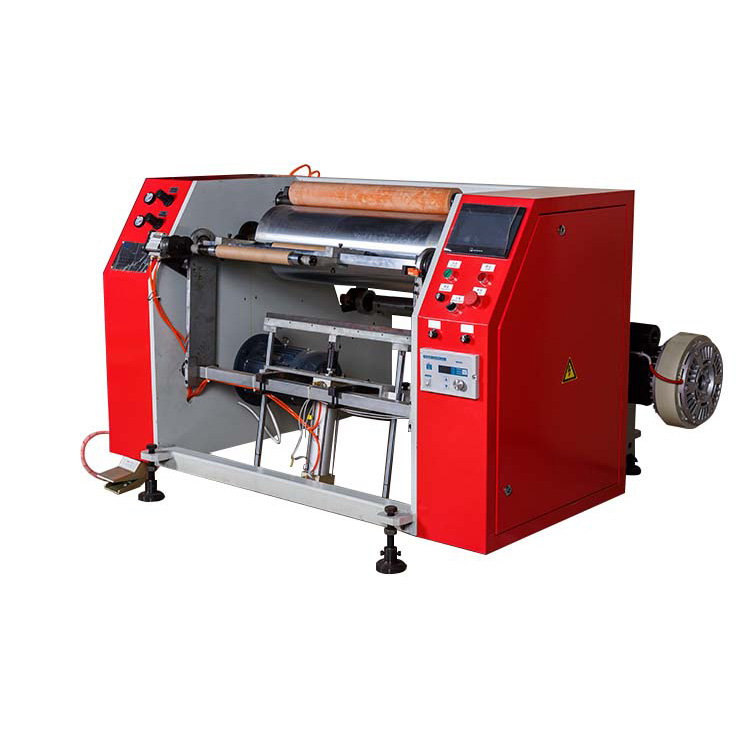

Semi-automatic aluminum foil cling film rewinding machine

  • PPD-AFCF600

  • Semi-automatic aluminum foil cling film rewinding machine is used to produce disposable household aluminum foil rolls,kitchen foil rolls and cling wrap rolls or stretch film rolls for for storing food and keeping fresh.

Video

Features:

1:It is automatic meter counting,automatic deceleration,automatic shutdown.

2:Automatic take-off of the surface winding state of the rewinding work, automatic cutting after the manual conversion station.

3:After the completion of the rewinding,the finished product roll is manually removed under the action of the pedal cylinder,then the empty paper tube is replaced,and the glue is manually brushed.

4:When the machine automatically rewinds the reeling work,the manual work is manually completed to maximize the machine work efficiency.


Machine data:

Model:PPD-AFCF600

Rewinding material:Aluminium foil,cling film

Raw material thickness:9-20mic

Finished product width:450mm

Raw material shaft:76&152mm (option)

Paper tube inner diameter:25/30/35/38/40mm(option)

Production speed:300rpm/min

Voltage:220/380/415/450v,50hz,3 phase

Total power:4kw

Machine weight: 880kg

Machine size: 1800*1750*1350mm

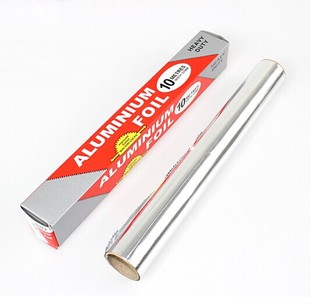

aluminium foil rolls.jpg

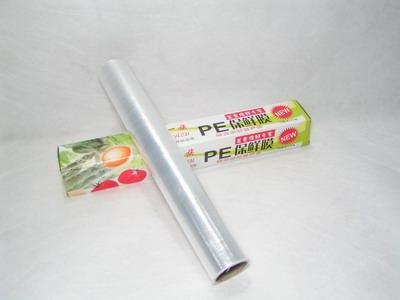

cling film roll-1.jpg





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
