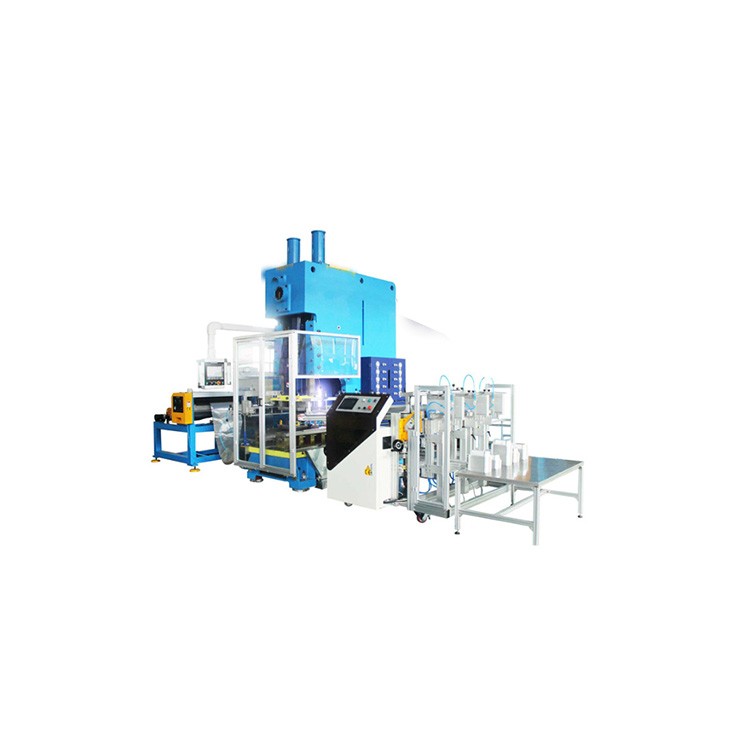

Aluminium foil food dish container production line with safety cover

  • PPD-A63T

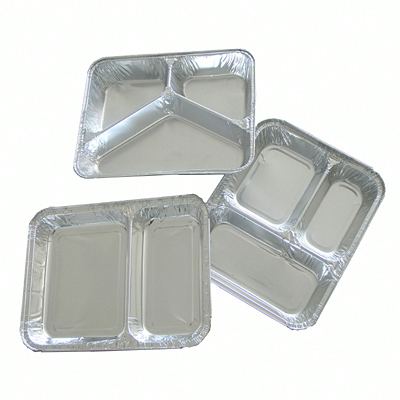

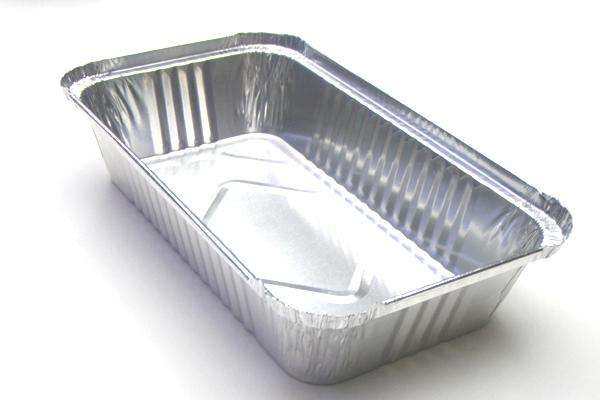

  • Aluminium foil food dish container production line with safety cover is designed for producing all comon size aluminium foil container as buyer requirement.
    This model is with safety barrier system,it can be more safe and user friendly.

Fearures:

1:PLC touch screen control,easy to operate and user friendly.


2:Safety barrier system,it can be more safe.



3:Aluminum Foil Feeding Machine


Feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment. It can realize automatic oiling, automatic feeding, automatic tracking features, which automatically feeding 20-999mm in length, the length of an arbitrary set, it provide accurate positioning and widely adjusting range.


4.High accuracy press


Steel Plate Wielded Machine body marked with high rigidity and less deformation.

Crankshaft is arranged in longitudinal direction, which has well-designed structure and beautiful appearance.

The sliding block adopts hexagonal extended guide rails with high precision, and double pneumatic balance sliding block of high precision is used.

It adopts combined pneumatic friction clutch and barking device to ensure steady clutching, low noise level, and flexible action.

It has steel press-down type safety device with simple structure and safe performance.

The imported PLC electronic control system and Duplex safety valve are used to achieve emergent stop, inching, sing action and continuous operation. Electric adjustment of mould load height is adopted, enabling easy operation.


5.Auto stacker


Auto stacker is necessary key part to achieve for complete automatic aluminium foil container production line.

We have lane number from 1 to 5 lanes for different mould production.

Special size can be customized as buyer requirement.


6.Scrap Collecting Device


It is using for collecting the scrap in the production time, avoid that products are not able to be blown out in case some scrap are left in the Mould. It can significantly reduce the labor intensity, Improve working efficiency, and make sure the cleaning of workshop and efficient production


Machine data:

1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.250mm

        Alloy: 8011,8006,3003,3005; Temper O to H24;

2.Width of Aluminum foil: max 800mm

3.Outer diameter of Aluminum foil:max 700mm

4.Core diameter of Aluminum foil:76mm/152mm

5.Production speed:40-68 times/min

6.Air supply: 0.5- 0.8 Mpa, 0.3m3/min

7.Machine space: 6000*2600*3300mm

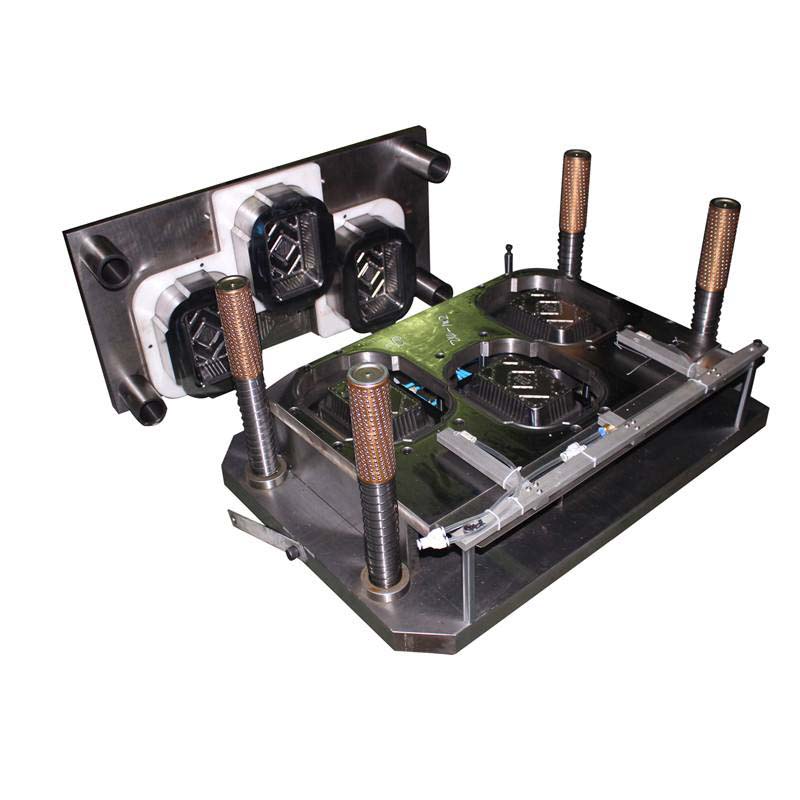

NOTE:Mould size is customized as buyer requirement

timg (5).jpgtimg (14).jpg

timg (1).jpg



Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
