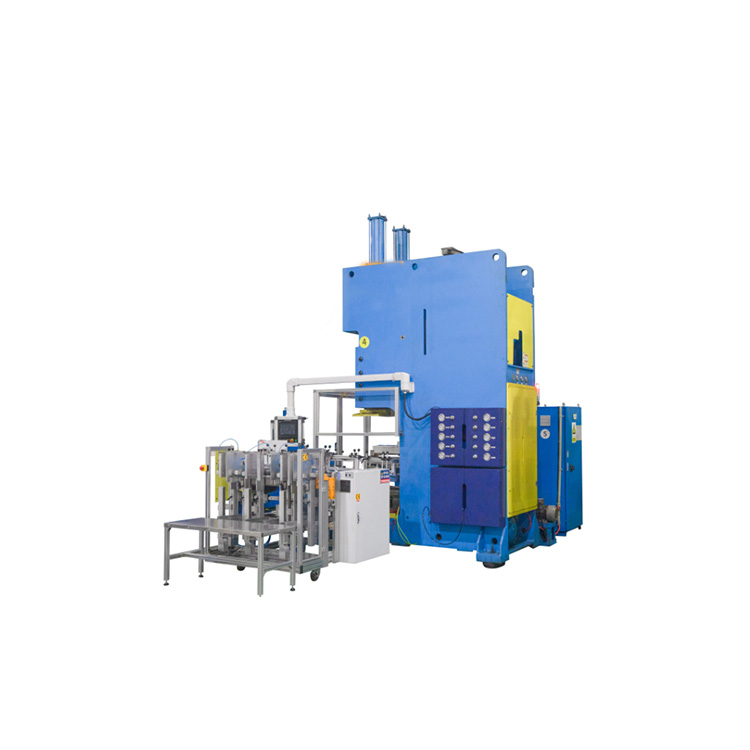

Fully automatic aluminum foil tray making machine

  • PPD-AFTM

  • Fully automatic aluminum foil tray making machine is a production line,it is included feeding machine, high accuracy press, scrap collecting system, stacker.

    Features:
    1.The machine adopts PLC as the controlling system.
    2.The feeding length, producing speed and other parameter are easily set, this integration of Gas& Electrical centralized control, automated production.
    3.The feeding is controlled by stepper system, the feeding length is accurate And can be adjusted freely from 20m to 999m.
    4.The high accuracy press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch-on-off, rigid over-load protector to protect the press.

Video

I.Feeding machine




Max.Width of Roll350mm500mm650mm750mm
Max.Unwind Roll Diameter600mm600mm600mm600mm
Feeding Speed0-35 m/min0-35 m/min0-35 m/min0-35 m/min
Feeding Length20-999mm20-999mm20-999mm20-999mm
Feeding Accuracy±0.3mm±0.3mm±0.3mm±0. 3mm
Voltage220/380/415 V220/380/415 V220/380/415 V
220/380/415 V

II.High Accuracy Press




ModelPPD-45TPPD-63TPPD-80TPPD-110T
Nominal Pressure450KN630KN800KN1100KN
Slide Block Strok100-260mm120-260mm140-260mm150-260mm
Slide Stroke Per Minutes70-50/min70-50/min60-45/min50-40/min
Maximum Die Set Height270-400mm310-450mm325-450mm345-500mm
Die Set Height Adjustment60mm70mm80mm90mm
Slide Bottom Size410*340mm480*400mm560*460mm630*520mm
Stemhole Sizeφ60*60mmφ60*65mmφ60*75mmφ60*85mm
Bolster Surface Size810*440/990*750mm870*520/1000*800mm1000*600/1200*800mm1100*680/1300*800mm
Total Power5.5kw5.5-7.5kw7.5-11kw11-15kw

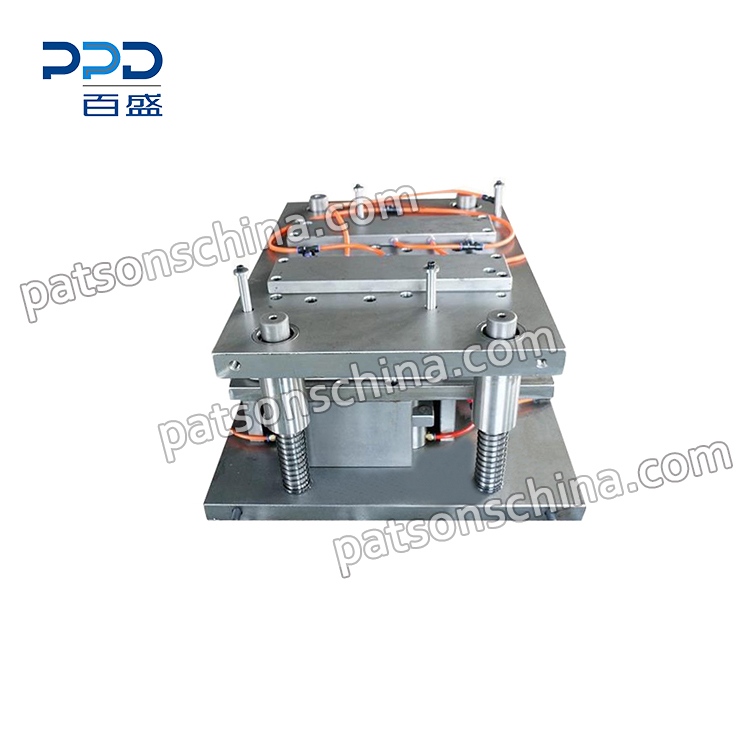

III.Mould

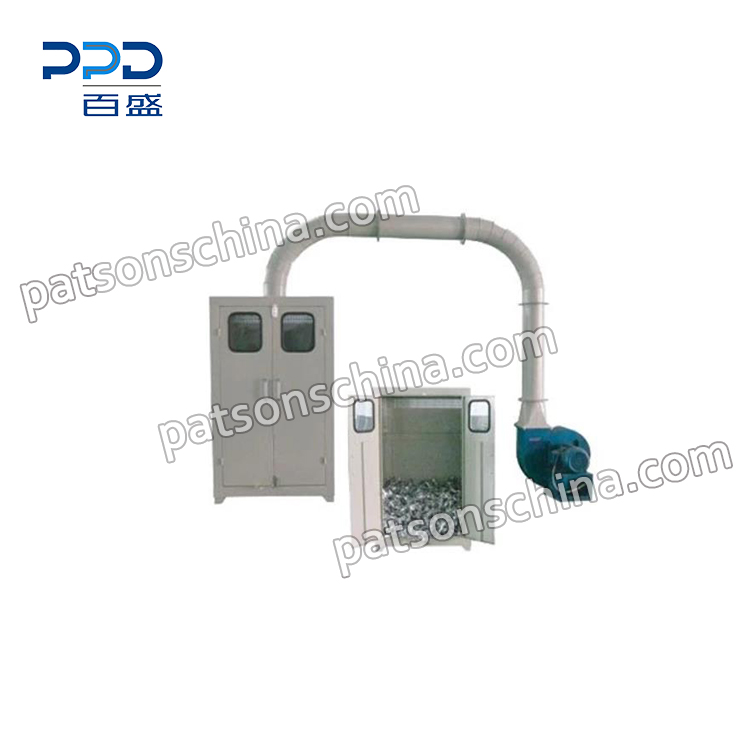

IV.Scrap Collrcting Device


timg.jpg      u=1635948205,406936364&fm=26&gp=0.jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
