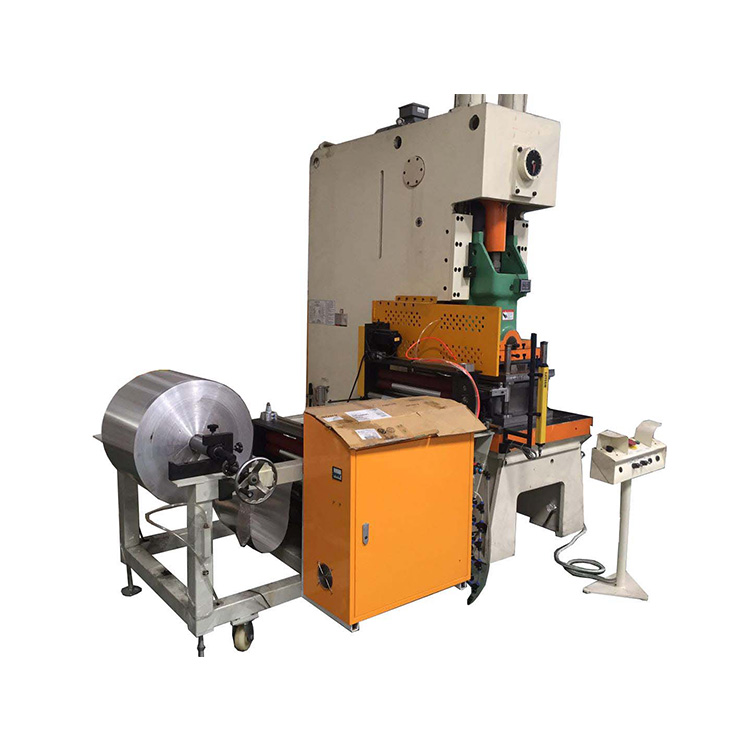

Paper plate container and aluminium foil container making machine
-
PPD-PCP
-

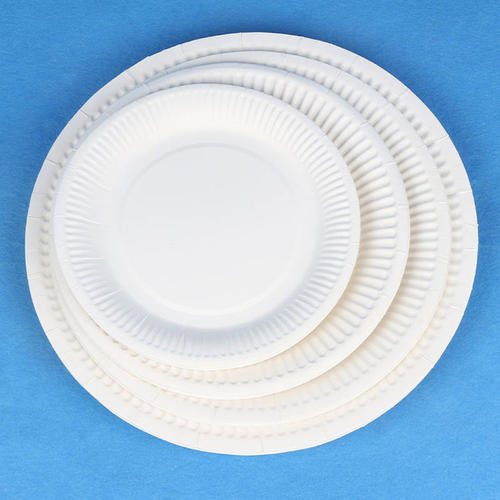

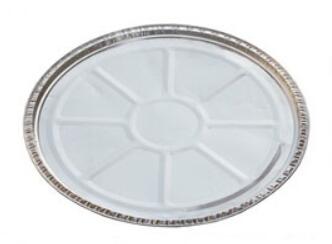

Paper plate container and aluminium foil container making machine is new designed model to produce the paper container,paper plate container,paper dish container and aluminium foil container etc..
By changing the different mould,the production line can produce the product as buyer requirement.
It is included feeding machine,high accuracy press machine
Video
Features:
1.The machine adopts PLC touch screen,easy to use it,feeding length, producing speed and other parameter are easily set,user friendly.
2.The feeding is controlled by stepper system, the feeding length is accurate.
Feeding machine data:
| Max.Width of Roll | 350mm | 500mm | 650mm | 750mm |
| Max.Unwind Roll Diameter | 600mm | 600mm | 600mm | 600mm |
| Feeding Speed | 0-35 m/min | 0-35 m/min | 0-35 m/min | 0-35 m/min |
| Feeding Length | 20-999mm | 20-999mm | 20-999mm | 20-999mm |
| Feeding Accuracy | ±0.3mm | ±0.3mm | ±0.3mm | ±0. 3mm |
| Voltage | 220/380/415 V | 220/380/415 V | 220/380/415 V | 220/380/415 V |
High accuracy press machine data:
| Model | PPD-45T | PPD-63T | PPD-80T | PPD-110T |
| Nominal Pressure | 450KN | 630KN | 800KN | 1100KN |
| Slide Block Strok | 100-260mm | 120-260mm | 140-260mm | 150-260mm |
| Slide Stroke Per Minutes | 70-50/min | 70-50/min | 60-45/min | 50-40/min |
| Maximum Die Set Height | 270-400mm | 310-450mm | 325-450mm | 345-500mm |
| Die Set Height Adjustment | 60mm | 70mm | 80mm | 90mm |
| Slide Bottom Size | 410*340mm | 480*400mm | 560*460mm | 630*520mm |
| Stemhole Size | φ60*60mm | φ60*65mm | φ60*75mm | φ60*85mm |
| Bolster Surface Size | 810*440/990*750mm | 870*520/1000*800mm | 1000*600/1200*800mm | 1100*680/1300*800mm |
| Total Power | 5.5kw | 5.5-7.5kw | 7.5-11kw | 11-15kw |
Mould data:
| Shaping Mode | Punching Mould |
| Cavity | One cavity or multi-cavities |
| Material | Steel Alloy |
| Thickness | 0.03mm--0.350mm |
| Quality | More than 6 million times punching |
| Technical Data | Elongation≥12%,Tensile Strength≥120Mpa. |
| NOTE | Different sizes can be customized as buyer requirement. |
