Aluminium Foil Machine

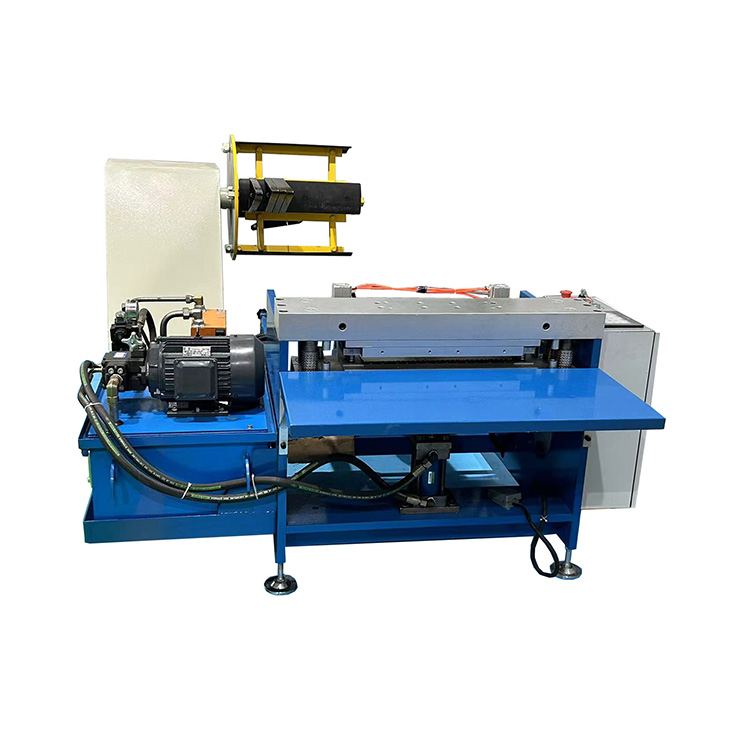

Semi automatic saw blade attaching machine
-
PPD-SBA75
-

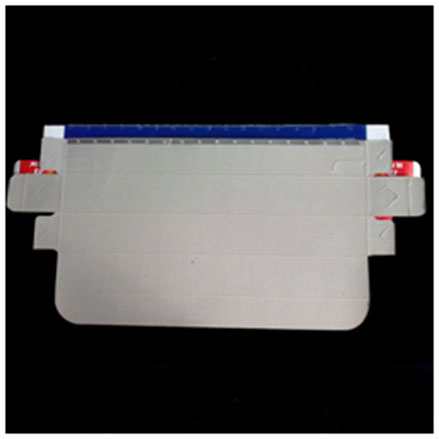

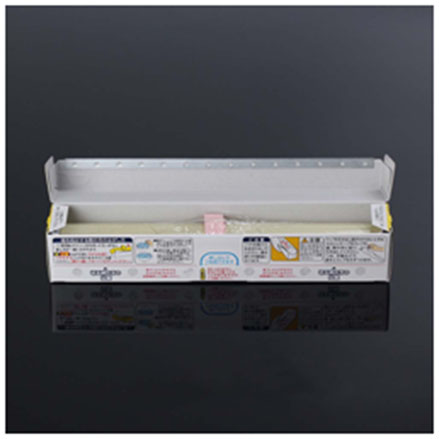

Semi automatic saw blade attaching machine is our special machine for attaching metal saw blades to aluminium foil roll baking paper roll cling fim roll boxes. There is a metal saw blade on the carton box, which makes it more convenient for customers to use aluminum foil rolls, silicone oil paper rolls and cling film rolls.The machine is simple to operate and highly efficient.
Video
Features:
1: Simple operation,touch screen to set parameters.
2: Machine has high efficiency, at 45-70 pcs per minute.
Machine data：
Machine name: Semi automatic saw blade attaching machine
Machine mode: PPD-SBA75
Saw Blade Material: Tinplate/Aluminum
Air expansion shaft: 76mm
Max pressure: 600KN
Raw material width: max 460mm
Raw material diameter:max 800mm
Speed: 45-70pcs/min
Mould loading mode: Stamping from bottom to top
Mould adjustable height: 6mm
Feeding length:3-1999mm
Power: 3.75kw
Voltage: 380v/50hz
