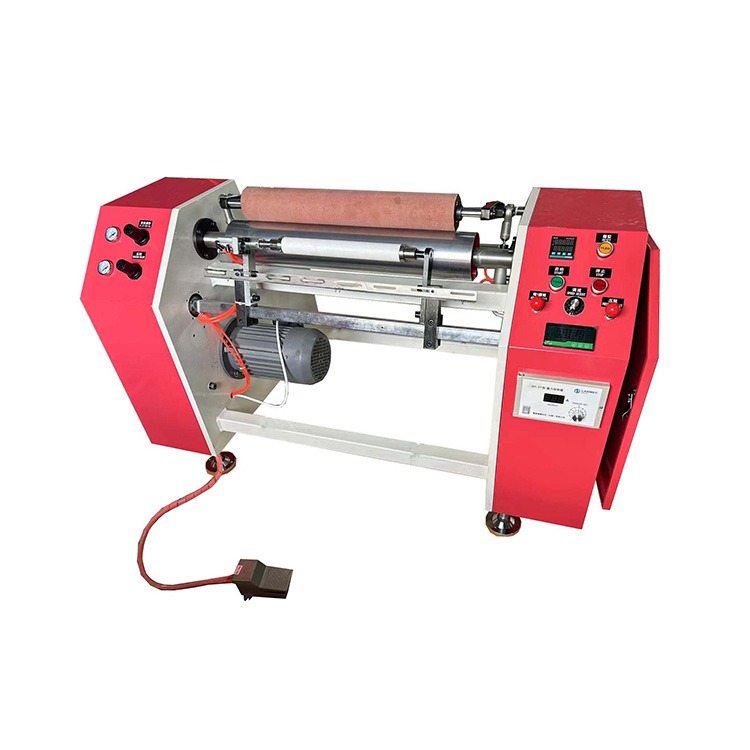

New model single station aluminum foil rewinding machine

  • PPD-AFR450

  • New model single station aluminum foil rewinding machine is developed by us based on the original single shaft aluminum foil rewinder and combined with our semi automatic two shaft aluminum foil rewinder.
    The new model single station aluminum foil rewinding machine has a compact structure and easy operation,making it an ideal choice for rewinding different width and different length and different inner diameter aluminum foil product rolls.

Video

Features:

1. Automatic meter counting and automatic control of magnetic powder tension.

2. Easy to operate machine max speed reaches 300rpm/min,high efficiency

3. The unwinding of the mother roll with an air shaft is simple and convenient.


Machine data:

Machine name:New model single station aluminum foil rewinding machine

Machine model:PPD-AFR450

Jumbo roll max width:450mm

Jumbo roll ID:3inch(76mm)

Jumbo roll OD:max 500mm

Jumbo roll loading method:air shaft

Samll roll max width:450mm

Samll roll ID:30/35/38mm etc

Small roll length:max 300meters

Speed:max 300rpm/min

Air:0.4mpa

Voltage:220/380/415v,3ph

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
