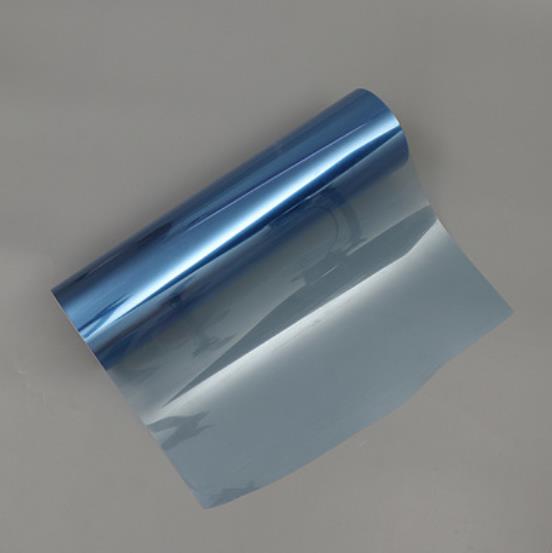

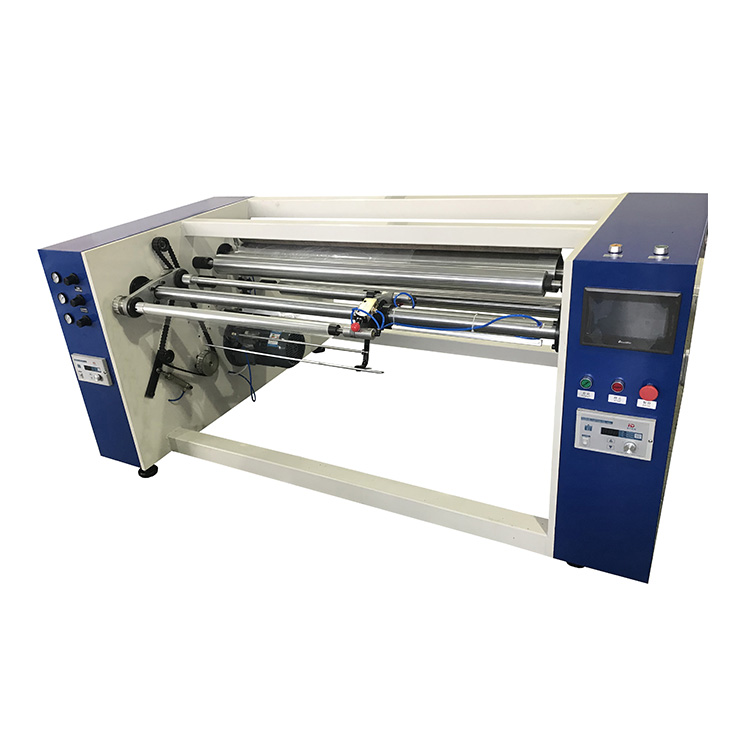

Semi automatic PET film rewinder is designed model to produce the PET film roll,table cloth film roll,plastic film roll,CPP film,CPE film etc..Machine is with dual shaft for automatic changen of rewinding heads.
Features:
1:Two shafts rewinding system,after one head finished rewinding once reach the setting length,machine will automatic switch to the next one which is loaded core,this dual-shaft design can improve the production speed than the single head model.
2:Machine is with cutting blade when the rewinding is finished,user friendly.
Machine data:
Model:PPD-PET1400
Rewinding raw material:PET film,table cloth film,plastic film,CPP film,CPE film,PVC film,PE film etc.
Raw material width:1400mm(adjustable)
Raw material inner core size:3/6 inch (option)
Raw material outer diameter:max 1000mm
Product roll inner core diameter:1/1.5/2/3 inch(option)
Product roll width:1400mm(adjustable)
Product roll length:3-100meters
Production speed:max 300rpm/min
Voltage:220/380/415/450v,50hz,3 phase
Total power:2.5kw
NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
