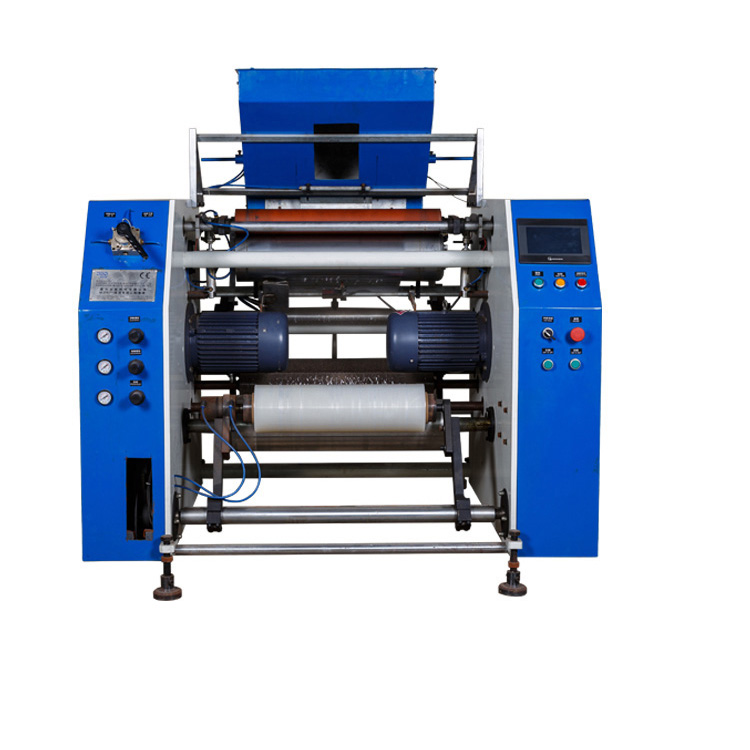

Automatic pre stretch film rewinding machine

  • PPD-PRE600

  • Automatic pre stretch film rewinding machine is designed for rewinding the stretch film jumbo to pre stretch film product roll or standard stretch film product roll.
    Machine is able to add on the folding edge on the both side of pre stretch sub roll,and also able to be oscillating rewinding to make the loose sub roll by much bigger diameter.
    Pre-stretching allows the initial stretch film to become thinner while remaining strong and tear resistant.It can reduce the application of film and increase the economic benefit.
    This model is a brand new product developed by our factory.Compared to the semi automatic pre stretch film rewinding machine,the rewinding speed of the machine is faster and the film is flatter.

Video

Features:

1:Machine is controlled by PLC computer.All programs are set by computer.The operation is simple and convenient.

2:The jumbo roll film is pneumatically loaded,paper tube is automatically fed,automatic rewinding,automatic cutting,automatic roll change.

3:The pre stretch ratio can be 100%-300% adjustable.


Machine data:

Machine name: Automatic pre stretch film rewinding machine

Machine model:PPD-PRE600

Max jumbo roll width:500mm(adjustable)

Max jumbo roll diameter:400mm

Jumbo roll inner diameter:76mm(3inch)

Jumbo roll loading way:Pneumatic cylinder

Max product roll width:600mm(adjustable)

Product roll inner diameter:38mm,50mm,76mm(option)

Product roll length:50meters,100meters,300meters (option)

Design pre stretch rewinding speed:max 300rpm/min

Design standard stretch film rewinding speed:max 650rpm/min

Voltage:220/380/415/450v,3ph(option)

NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED.

timg (4)(3).jpg





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
