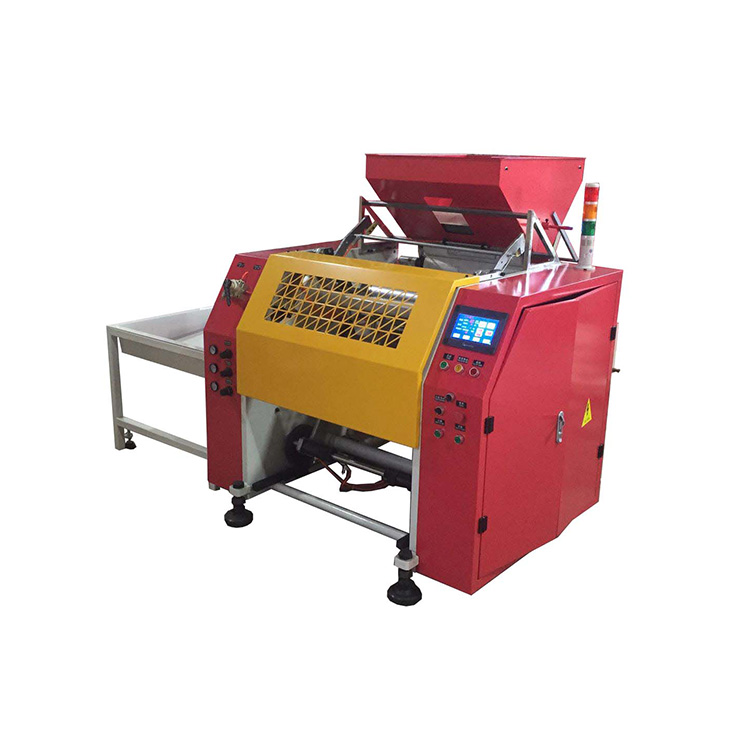

Heavy duty high speed automatic stretch film rewinding machine, China factory price

Heavy duty high speed automatic stretch film rewinding machine

Heavy duty high speed automatic stretch film rewinding machine an upgraded version of our high speed automatic stretch film rewinder.
Heavt duty model,can hold one week seven days 24 hours per day no stop working.Machine is automatic high speed rewind the stretch film roll,hand film roll,machine roll etc.
We widened the wall panels on both sides of the machine to a thickness of 30mm. When the machine is running,it will be more stable and the running sound will be smaller.
The front connecting rod increased to 30-40mm in solid type.
Single belt change to double belts with width 140mm.
We added a safety shield on the front of the machine. The safety shield needs to be closed when the machine is running, which can effectively protect the operators and prevent them from touching the running parts when the machine is running.

Video

Features:

1: Add safety shield,protect operators.

2: Touch screen seeting the data,easy to use the machine

3:Heavty duty high speed model,fast and stable

Machine data：

Master roll width: 500mm

Master roll ID: 3''

Master roll OD: 500mm

Rewinding roll width: 500mm

Rewinding roll ID: 1.5/2/3inch

Speed: max1200m/minute

Total power: 4.37kw

Air supply: 0.3Mpa

Voltage: 220/380/415/440/450v

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.

Heavy duty high speed automatic stretch film rewinding machine01.jpg
