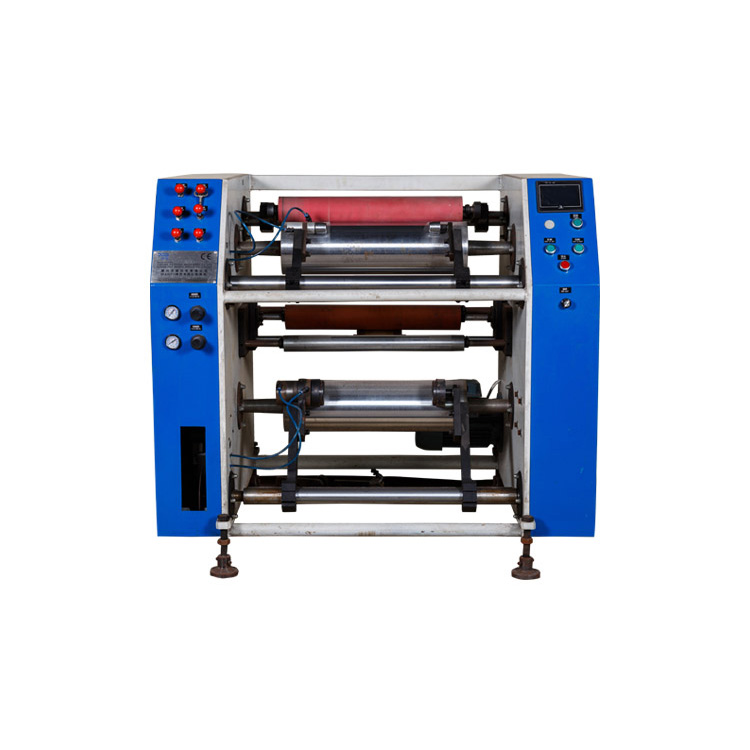

Semi auto stretch film rewinder is designed for rewinding the LLDPE stretch film, PVC cling film, industrial stretch wrap, pallet stretch wrap, hand stretch film, bundling stretch film, food stretch wrapping film jumbo roll to product small roll.
As multifunctional option, Semi auto stretch film rewinder can work as a standard stretch film slitter rewinder by using the knife system.
1- It is suitable for rewinding of stretch wrap film and cling film etc..
2- Machine is small in structure, easy to operate and basically no need maintenance.
3- Machine is with automatic meter counting system.
4- By rewinding, it is possible to better eliminate a series of problems such as bubbles and unevenness of the film.
5-By using the slitting system,this model can work as standatd slitter rewinder.
Machine data:
Machine name: Semi auto stretch film rewinder
Machine model: PPD-SAFR500
Mother roll width: max 500mm
Mother roll diameter: max 400mm
Mother roll inner diameter:76mm(3inch)
Mother roll loading method:Pneumatic cylinder
Product roll inner diameter:38mm,50mm,76mm(option)
Product roll width:max 500mm
Rewinding speed:max 650m/min
Voltage:220v,380v,415v,450v/3ph(option)
Power:2.37kw
Weight:500kg
PPD-PET1400
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
