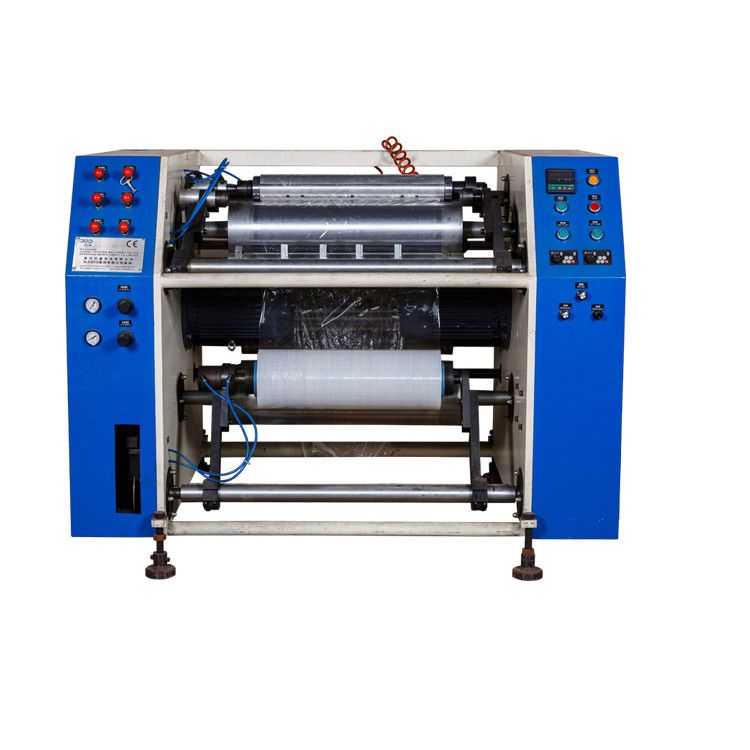

Semi automatic pre stretch film rewinding machine is designed for rewinding the stretch film jumbo roll to product pre stretch film small roll or standard stretch film product roll.
As multifunctional option,this machine can work as a standard pre stretch film slitter rewinder by using the knife system.
Features:
1:The pre stretch ratio can be 100%-300% adjustable by buyer requirement.
2:Machine is simple,operate easily.
3:Machine is with automatic meter counter.
Machine data:
Machine name:Semi automatic pre stretch film rewinding machine
Machine model:PPD-SPRE600
Max mother roll width:500mm
Max mother roll diameter:400mm
Mother roll inner diameter:76mm(3inch)
Material loading:Pneumatic cylinder
Product roll inner diameter:1.5/2/3inch (option)
Max product roll diameter:300mm
Product roll width:500mm
Max rewinding speed:600rpm/min
Voltage:220/380/415/450v,3ph(option)
Weight:750kg
NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED.
