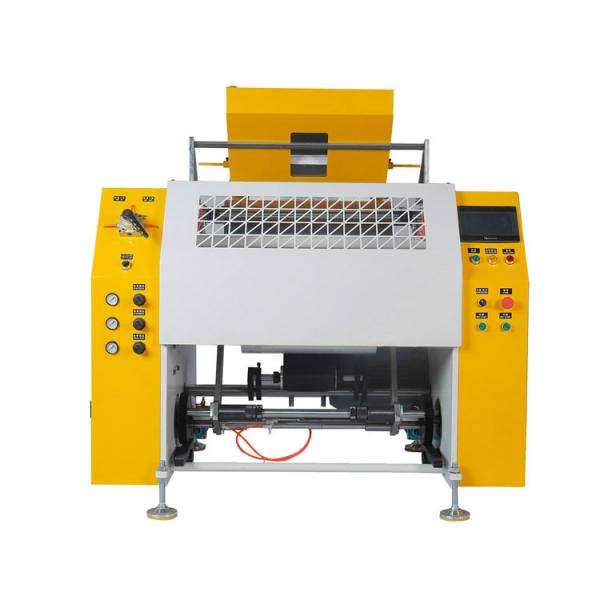

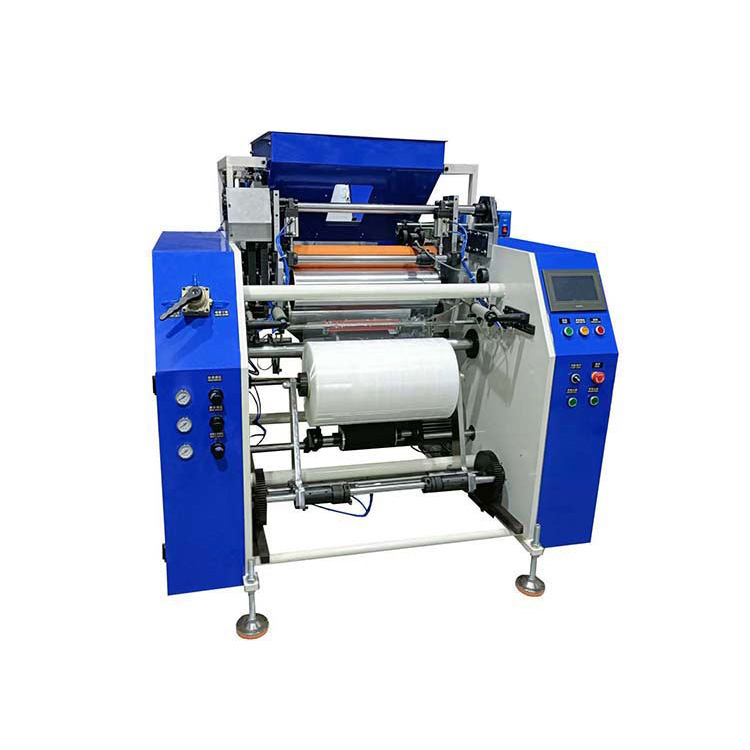

Automatic 4 shafts stretch film rewinding machine

  • PPD-4AS500

  • Automatic 4 shafts stretch film rewinding machine is new designed model for rewinding the the big jumbo PE stretch film rolls,industrial rolls,hand rolls,machine rolls and cling film rolls etc. to small product rolls as buyer requirement.
    By upgrated the rewinding shaft change system,4 shaft changing for non-stop working,it improves the production more than 50% than the market conventional model(single shaft model).
    Machine is high output with high speed,operate easily.

Video

Features:

1:PLC touch screen,easy to operate and user friendly.

2:4 shafts paper core change system,it improves the production more than 50% than the market conventional model(single shaft model),can reduce the production cost.

3: Machine is with high working speed at max 1200m/min by using the high quality electric parts.



Machine name: Automatic 4 shafts stretch film rewinding machine

Machine model:PPD-4AS500

Max jumbo roll width:500mm(adjustable)

Max jumbo roll diameter:500mm

Jumbo roll inner diameter:76mm(3inch)

Jumbo roll loading method:Pneumatic cylinder

Small product roll inner diameter:50,76mm(2inch,3 inch option)

Max small product roll length:1000meters(adjustabel)

Max rewinding speed:1200m/min

Voltage:220/380/415/450v,3ph(option)

Power:5kw

Machine dimension:2000*1500*1900mm(L*W*H)

NOTE:ANY SPECIFICATIONS CAN BE CUSTOMIZED AS BUYER REQUIRMENT.

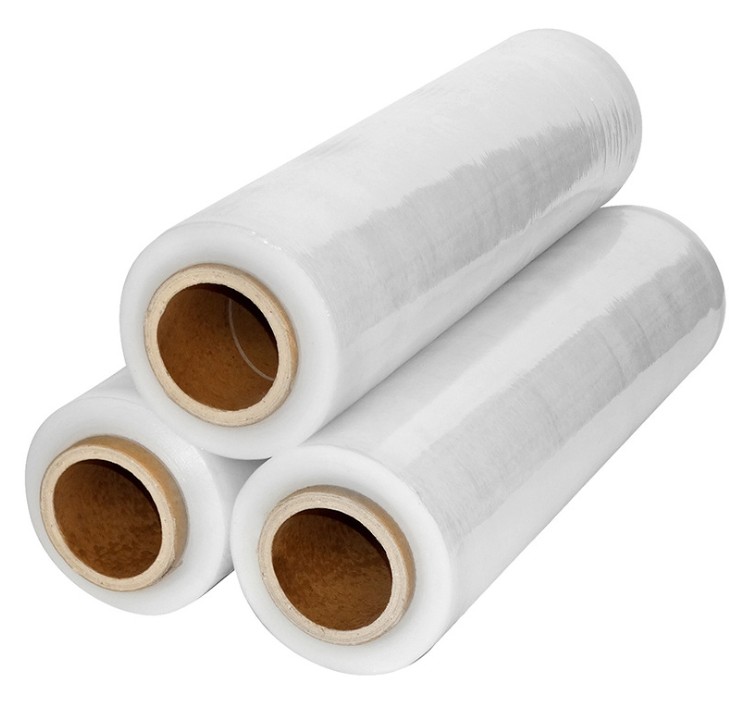

stretch film rolls.JPG




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
