4 Side Seal&Pack Machine

Working process:

Gauze roll, packaging roll film machine→Gauze soaked with povidine/iodine→Cutting to pad→Gauze pad output and bag feeding→Bag making→Packaging→Sealing→Output packaged finished product

Features:

1.With advanced servo control,the PLC programmable controller intelligently controls the operation of the whole machine,which has the advantages of cutting cloth,loosening film,conveying materials,stabilizing the conveyor belt.

2.Dual packaging material rack can be selected,suitable for different packaging materials.

3.Mobile synchronous heat sealing ensures more uniform and stable sealing surface temperature,resulting in better heat sealing effect.

Machine data:

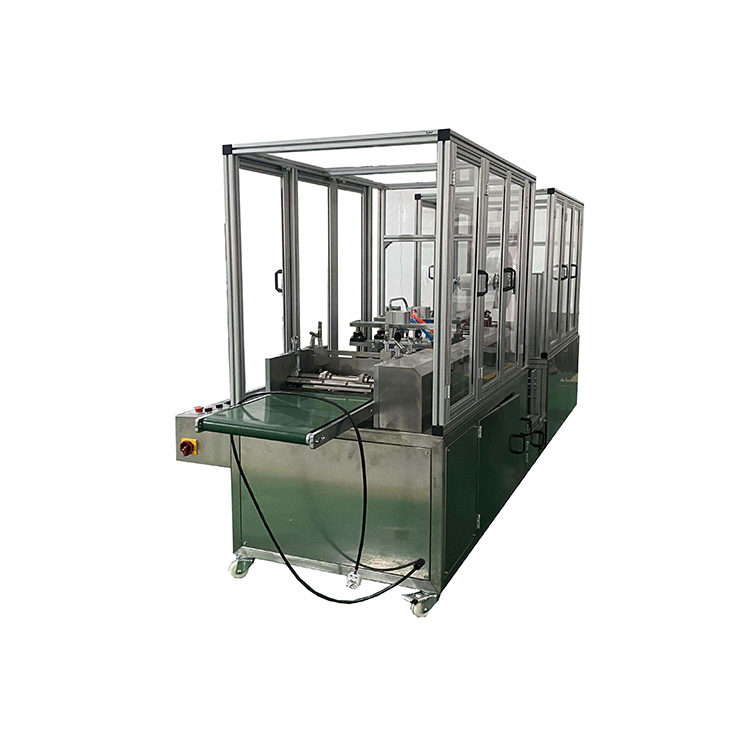

Machine name:Four side sealing povidine gauze pad manufacturing machine

Machine model:PPD-PGPM50

Povidine gauze pad size:60x30mm(customer requests)

Outside packaging bag size:80x50mm

Production Speed:30-50 bags/minute

Packing film size:max OD 350 mm,paper core 3inch

Gauze roll:coiled,20-40g/㎡,max OD 600mm,paper core 3inch

Total power:220V,50Hz,5 kW

Weight:500 kg

Machine size:2800mm*1100mm*1500mm(LWH)

Wooden case size:2200mm*1500mm*1500mm(LWH)

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
