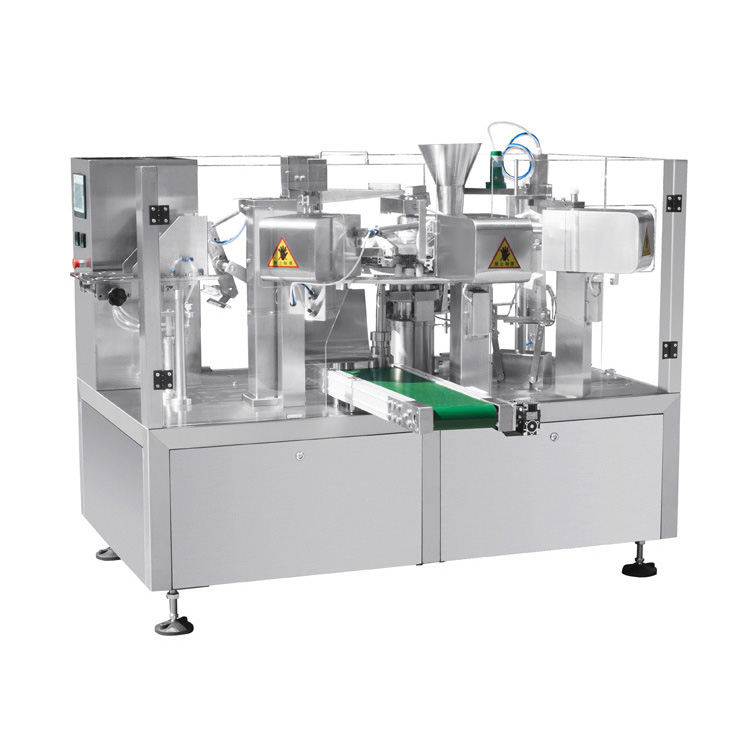

4 Side Seal&Pack Machine

Features:

1. Convenient operation, using German PLC control, with touch screen man-machine interface control system, easy to operate

2. Automatic detection function, such as no bag opening or incomplete bag opening, no feeding, no heat sealing, the bag can be used again, no waste of materials, saving the production cost for the user.

3. Safety device, when the working pressure is abnormal or the heating pipe is faulty, it will give an alarm.

4.The main motor is controlled by frequency conversion speed control, and the frequency can be set freely within a certain range on the color touch screen according to actual needs during production.

Work flow: manual bag placement—automatic bag removal—automatic bag opening—filling—detection—vacuuming—sealing—finished product output

Machine data:

Machine model: PPD-BFMP35

Applicable bag size: 8cm-20cm width and 8cm-30cm length

Applicable packaging type: flat bag

Applicable packaging materials:KF94 face masks,KN95 face masks,masks etc.

Packing speed:35 bags/minute.(Depending on packaging and weight)

Power supply: 380V.50Hz

Compressed air: 5-8Kgf/cm2, air consumption 0.3 cubic meters/minute (user-supplied)

Machine size:1460X2740X1360 (width X length X height)

Machine weight: about 1400Kg.
