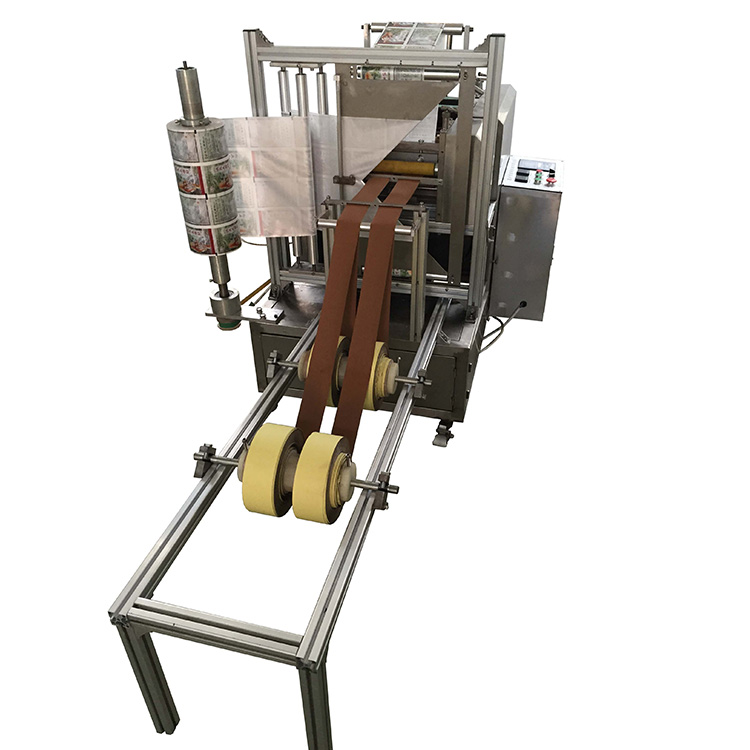

Automatic medical plaster pad packaging pachine is our special design machine.It adopts the latest Asian technology for manufacturing the differen plaster,widely use back pain,waise pain,neck pain for different area muscle pain.joint sour etc.
With PLC+LCD modern technology to control for fully automatic produciton.it is most for user friendly,high production volumn,less labor involved in the production,one person can operate the machine,meantime,the operator can pack the finsihed products into the paper box.
Features:
1. The whole machine is controlled by PLC programmable controller, and the parameters are set by the touch screen panel.
2. 2-channel output products, 60-120 packs/min of products per minute.
3. Product specifications are determined according to customer requirements.
Process flow:
Raw materials and packaging roll film on the machine→cutting→bag making→packaging→sealing→output packaged finished products.
Machine data:
Machine name: Automatic Medical Plaster Pad Packaging Machine
Machine model: PPD-MPP120
Pack Material Diameter: Max320 mm
Pack Material Width: Max400 mm
Plaster Size: 30-200× 30-200mm at option
Plaster Roll ID: 76mm
Plaster Roll OD: max320 mm
Plaster Roll: Width≤200mm
Speed: 60-120 pack/min
Package Size: 220mm (L) × 155mm(W)
Pack Material ID: 3inch
Voltage: 220v,50/60HZ,single phase
Total Power: 2.6kw
NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
