4 Side Seal&Pack Machine

Features:

1.This machine is fitted with a programmable controller (PLC), servo technology, and an advanced software system.These components enable the efficient control of the device's overall operations.The machine guarantees a precise and stable performance,thanks to its servo-driven bottom paper (or film) traction.

2.Our innovative adaptive slip method for film winding is tailored for all paper sizes and offers a smooth winding process.Importantly,it ensures consistent tension levels for both large and small rolls,enhancing user-friendliness.

3.This product is equipped with an independent oven that provides precise temperature control.The oven features a hot air circulation drying method that optimizes both heating effectiveness and energy efficiency.

4.The coating rollers are designed with a high degree of precision,ensuring accurate measurement.This enhances the overall reliability of the system during the measurement and coating process.

5.The machine also includes an automatic infusion system.The system is designed to adjust the medication according to the liquid content in the tank, ensuring the correct dosing is delivered every time.

6.The workflow begins with placing the medicine in the storage tank.The substance is then transferred into the liquid tank, where it is applied and dried to form a solid core.Finally,the material is wound up in a secure,efficient process that meets the industry standard.

Production process:

Place the medicine into the storage tank→transfer the medicine into the liquid tank→apply→dry and solidify→roll up.

Machine data:

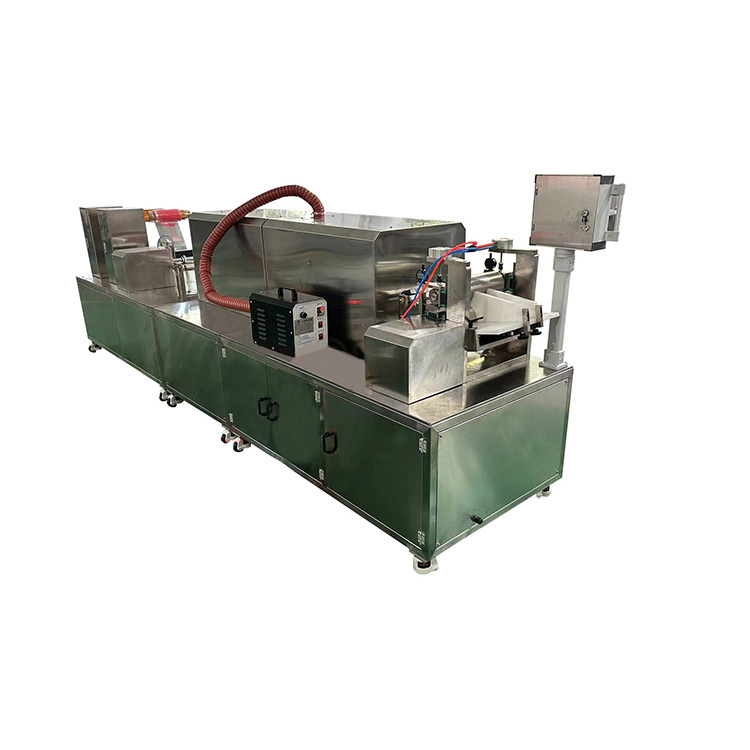

Machine name:Nicotine oral dissolving film making machine

Machine model:PPD-NDFM1

Max product width:300mm

Product thickness:0.02-0.1mm

Speed:0.01-1m/minute (depending on different products)

Bottom film width:amx 360mm,OD≤350mm,ID 3inch

Power:motor1.5KW,heater16KW

Voltage

Gas consumption:≥30m3/h(self provided),pressure:0.6-0.8Mpa

Machine weight:1800 kg

Dimensions:L5300mm*W1310mm*H1750mm

Packing size:two same wooden cases,L2600mm*W1550mm*H1900mm(one case size)

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
