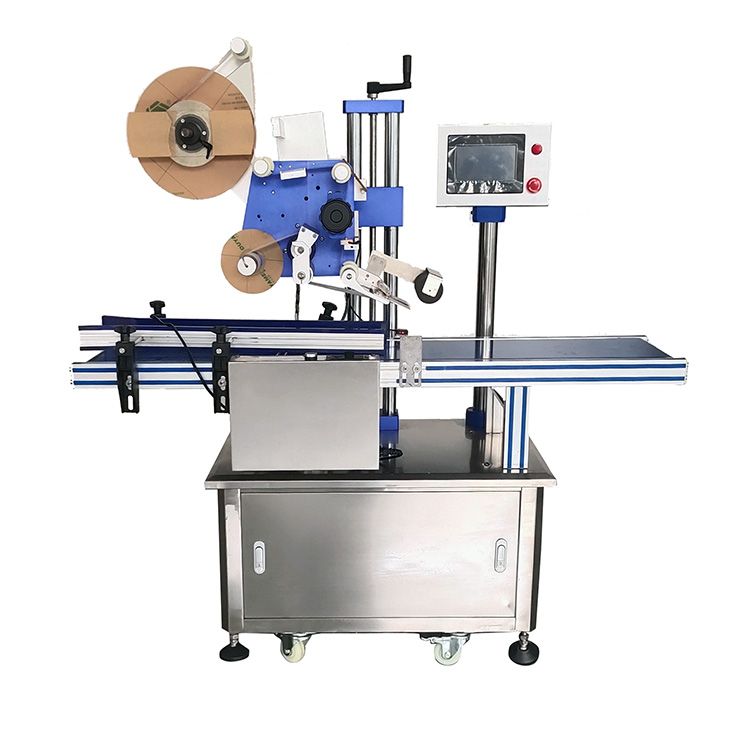

Flat labeling machine

  • PPD-FL180

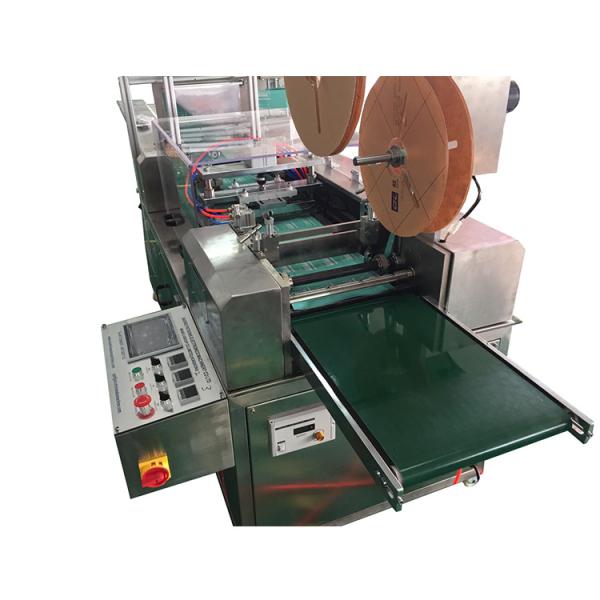

  • Flat labeling machine is a newly designed and developed machine of our company. This machine can be used together with our four-side sealing packaging machine. Machine can automatically attach self-adhesive labels and self-adhesive films on the flat and large arc surfaces of the product. Improve the sticking efficiency of product labeling and film sticking, the sticking position is accurate, the quality is good, and the stability is high.avoid a series of problems such as manual labeling, low film sticking efficiency, skewed sticking, blistering and wrinkling, and irregular sticking position.Effectively reduce product costs, improve product logo aesthetics, and enhance product competitiveness.

Video

Features:

1: The mechanical structure is micro-designed, occupying less space, and the equipment is easy to move and install in the assembly line.

2: Adopt the product-oriented gap elimination mechanism and the label anti-deviation mechanism, and the labeling positioning accuracy is as high as ±1mm.

3: The labeling stability is good, the labeling is flat, wrinkle-free, and bubble-free, which can meet the requirements of labeling on the flat surface and large arc surface of most products.

4: The ingenious design of the structural combination of the mechanical adjustment part and the label winding, the degree of freedom of the labeling position is easy to fine-tune (it can be fixed after adjustment), which makes the conversion between different products and the label winding simple and time-saving.

5: It has the functions of no labeling, automatic calibration and automatic detection without labels.

6: With fault alarm function and production counting function.


Machine data:

Machine name: Flat labeling machine

Machine model:PPD-FL180

Applicable labels: self-adhesive labels, self-adhesive films, electronic supervision codes, barcodes, etc.

Labeling accuracy: ±1mm (excluding product and label errors);

Labeling speed: 20 to 180 pieces/min (related to product size);

Applicable label width: 10-140mm

Overall size: 1500×750×1600mm (length×width×height);

Applicable power supply: 220V 50/60HZ;

Machine weight: 200Kg

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
