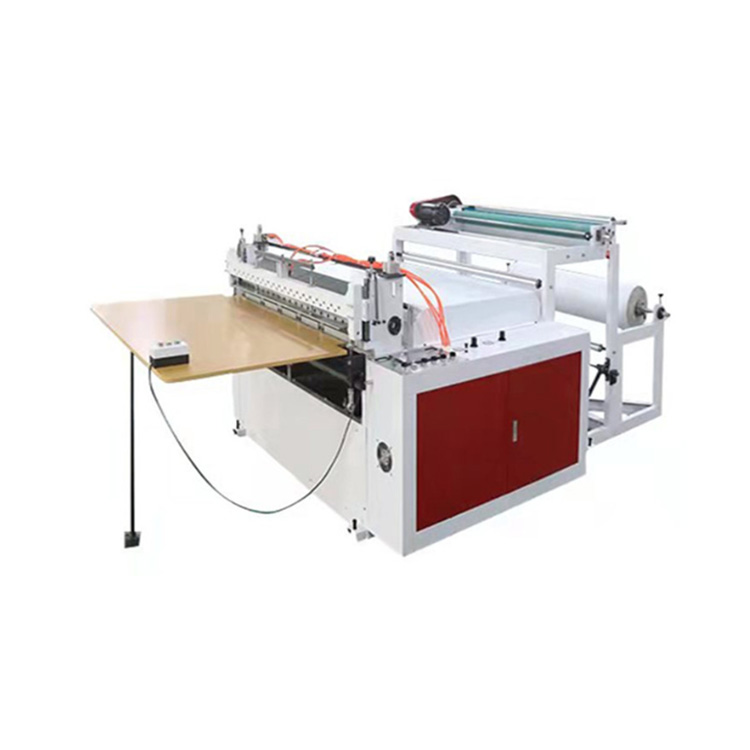

Plaster sheeting cutting machine

  • PPD-PS600

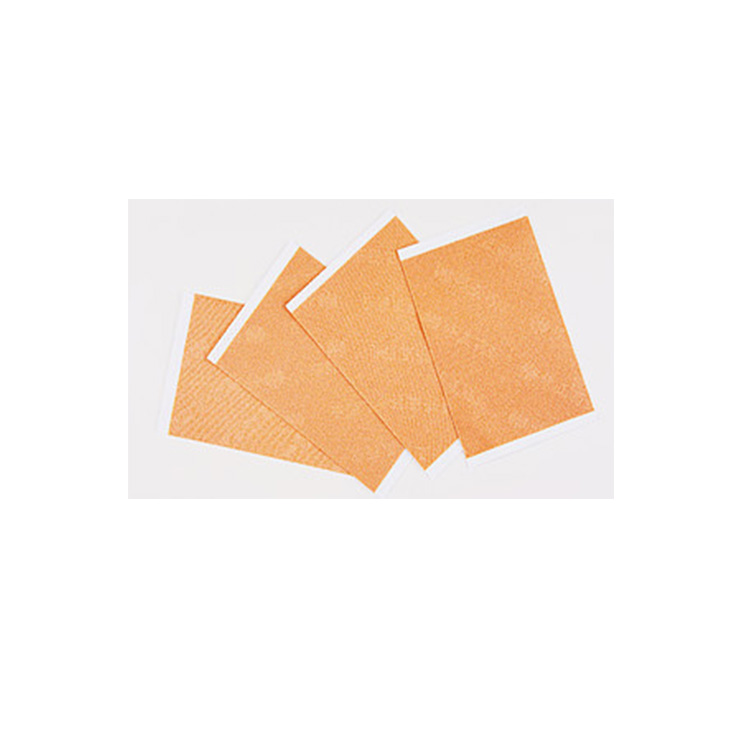

  • Plaster sheeting cutting machine is a process in our company's plaster production line.Plaster sheeting cutting machine is used to roll and sheet cut the plaster products that have been coated and cut into strips according to the customer's product requirements.
    This machine can also sheet cut insulation paper,PVC film,PET film, non-woven fabric,plastic film,diffusion film,aluminum foil,copper foil,kraft paper,polyester cloth,pearl cotton and other products.It is a widely used sheeting cutting machine.

Video

Features:

1:High speed and precise feeding,with an accuracy of 0.1mm

2:High speed stepper motor precisely controls the sheetingl length,machine speed can adjust as buyer requirements

3:Chinese and English two languages operation interface,touch screen setting parameters,simple and convenient

4:Automatic cumulative counting,easy to use


Main data:

Machine name:Plaster sheeting cutting machine

Machine model:PPD-PS600

Cutting width:max 550mm

Cutting speed:1-50m/min.

Cutting length:0.1mm-1000mm.

Mother roll inner diameter:76mm

Mother roll outer diameter:max 1000mm

Product thickness:50-200g

Feed motor:stepper motor.

Cut off the motor:AC geared motor.

Power requirements:220V/50HZ.

Voltage:220v,3ph

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
