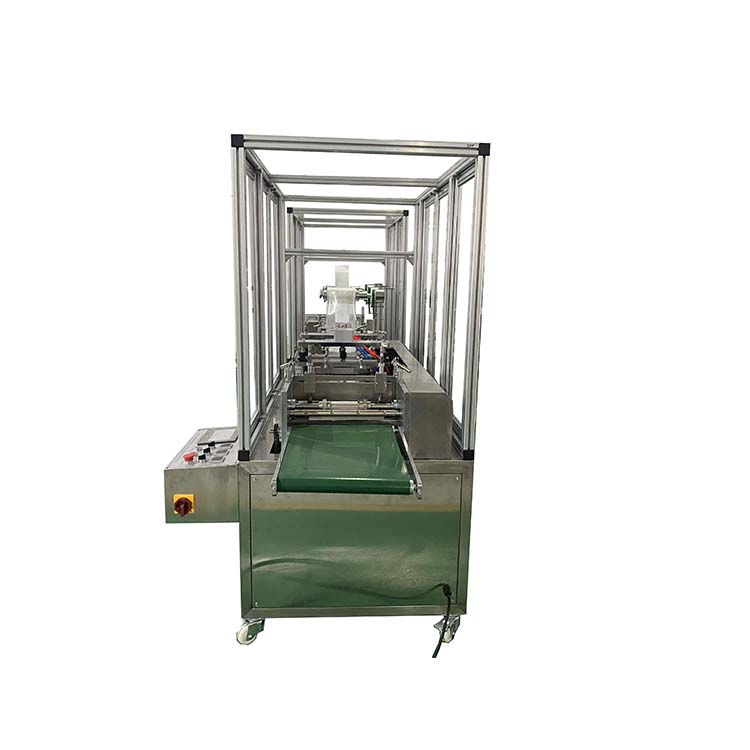

Four side seal automatic vaseline gauze pad making machine

  • PPD-VGP50

  • Four side seal automatic vaseline gauze pad making machine is a new type of automatic Vaseline gauze packaging machine that has been optimized and redesigned by Jiaxing Baisheng's technical personnel based on their long-term experience in developing Vaseline gauze packaging equipment, combined with the experience and suggestions put forward by users during use. The fully automatic Vaseline gauze packaging machine automatically completes the soaking, folding, covering, slicing, and automatic packaging of gauze.

    Working process:
    Gauze roll, isolation paper roll, packaging film roll on the machine → Soak the gauze in Vaseline (squeeze to control liquid volume) → Compound the paper up and down → Cut → Output and enter the gauze sheet → Bag making → Packaging → Sealing → Output the packaged finished product

Video

Features:

1. Servo motor control, touch screen parameter settings, and simple machine operation.

2. Mobile synchronous heat sealing, more stable four sided sealing, and beautiful product effect.

3. The production and packaging of gauze are completed in one unit, with fully automatic equipment.



Machine data:

Machine name:Four side seal automatic vaseline gauze pad making machine

Machine model:PPD-VGP50

Specification of vaseline gauze pad: 100x100mm.( customer sizes)

Packaging bag specification: 150x160mm

Production speed: 30-50 bags/minute

Packaging film: Φ≤ 350 mm, width 150 mm, inner diameter of paper core 76.2mm

Applicable raw materials: coiled, 20-40g/ gauze roll material

Gauze roll material: diameter ≤ 600mm, width 100mm

Paper roll raw material: diameter ≤ 400mm, width 130 mm

Inner diameter of raw material paper core: Φ 76.2mm (=3 ")

Total power: 220V, 50Hz, 5 kW

Weight: 500 kg

External dimensions: 2800mm*1100mm*1500mm(LWH)

Packing size: 2200mm*1500mm*1500mm(LWH)

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.






Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
