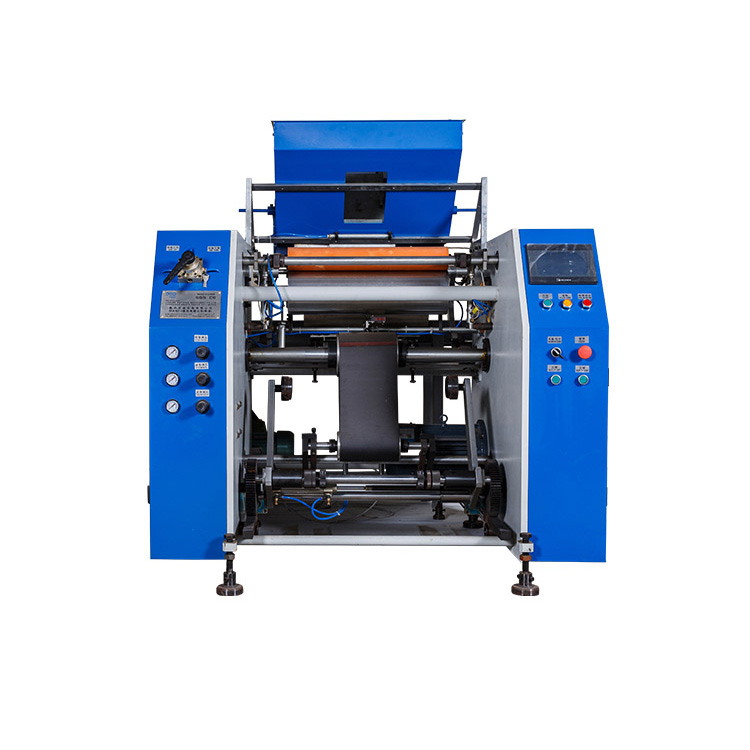

Automatic single shaft cling film rewinder

  • PPD-ACW450

  • Automatic single shaft cling film rewinder is designed model for producing PVC cling film rolls,PE cling film rolls, hand rolls,stretch film rolls,machine rolls etc.. It is widely used in raw food,meat,fruits and vegetables,packaging,supermarkets,restaurants,cooked food, seafood etc..
    Machine is easy to opearte with PLC touch screen,user friendly and high output,one worker can operate two or three machines at the same time.
    Since the automatic single shaft cling film rewinder has been put on the market,it has been highly praised and recognized by the customers for its high quality and stable performance.

Video

Features:

1: Machine adopts PLC man-machine interface communication Program,colour touch screen,inverter control motor,easy to operate.

2:The electrical parts adopt top brands,it make machine stable.

3: Automatic paper core loading,automatic rewinding,automatic shaft exchange,automatic cut off of rewind roll when reach the setting length,which greatly provides production efficiency and effectively reduces production costs.


Machine data:

Machine name: Automatic single shaft cling film rewinder

Machine model:PPD-ACW450

Jumbo roll width:maximum 450mm(adjustable)

Jumbo roll diameter:maximum 400mm

Jumbo roll inner diameter:3inch

Jumbo roll loading way:Pneumatic cylinder

Small roll inner diameter:30,35,38,50,76mm(as buyer requirement)

Small roll length:50meters,100meters,300meters,600meters(option)

Design rewinding speed:maximum 900m/min

Voltage:220/380/415/450v,3ph(option)

Power:4kw

Weight:800kg

automatic cilng film rewinder-2.jpg

automatic single shaft cing film rewinder-3.jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
