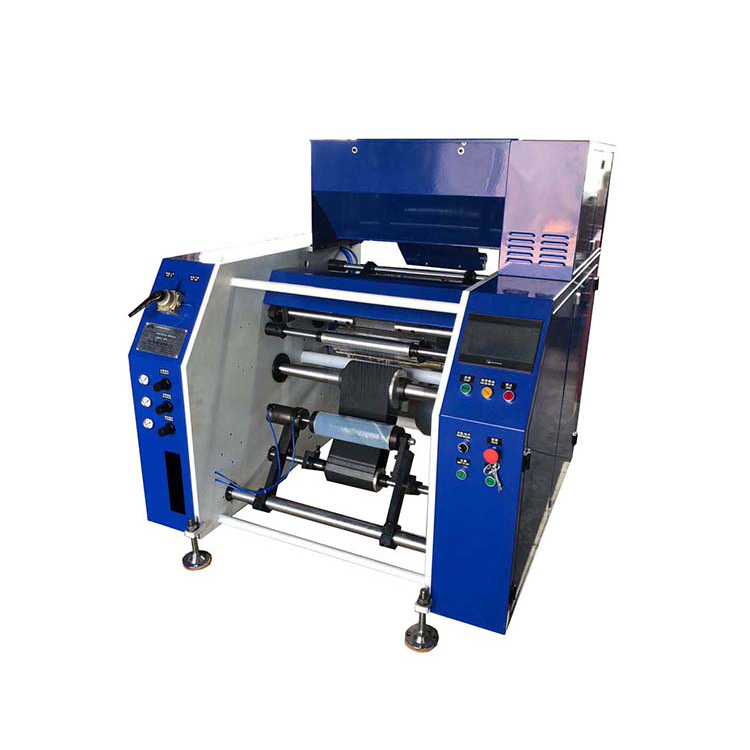

4 shafts automatic PE/PVC cling film dotted rewinder

  • PPD-4SD450

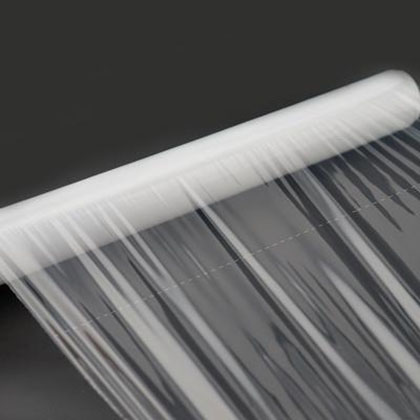

  • 4 shafts automatic PE/PVC cling film perforated rewinder is our high quality machine developed on the basis of the automatic 4 shafts cling wrap film rewinding machine.This machine can produce standard small roll products of cling wrap film, also can produce small product rolls of PE/PVC cling film with dotted lines. Dotted PE/PVC cling film rolls is easy to tear,simple and convenient, the length of dotted line can be adjustable to meet the different needs of different customers in different markets.

Video

Features:1. Can produce standard cling wrap film rolls,also can produce dotted PE/PVC cling film rolls.It is multifunctional. 2.Servo motor controls the dotted line function,length of the dotted line is adjustable. 3. Touch screen setting parameters,easy. 4. 4 shafts automatic rewinding, high production output.Machine data:Machine name: 4 shafts automatic PE/PVC cling film dotted rewinder Machine model:PPD-4SD450 Width of jumbo roll:300-450mm ID of jumbo roll:76mm(3 inch) OD of jumbo roll:max 400mm Width of small roll:300-450mm ID of small roll:30/35/38/40/50/76mm(option) Length of small roll:5-300meters Length of dotted line:300mm adjustable Prouction speed:max 600rpm/min Voltage:220/380/415v,50Hz (option) NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
