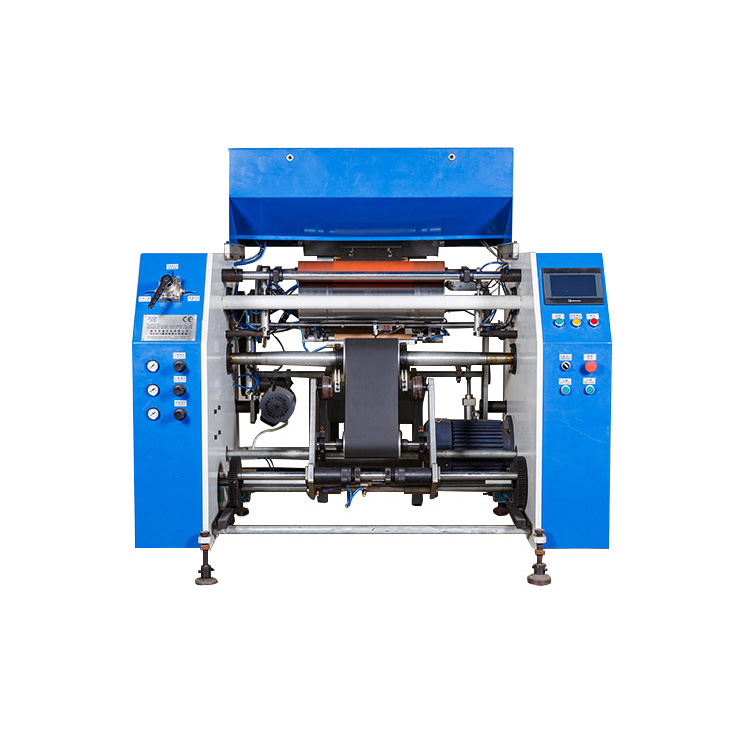

Automatic 5 shaft cling film rewinding machine

  • PPD-5SH450

  • Automatic 5 shaft cling film rewinding machine is designed model for producing PE cling film rolls,PVC cling film rolls,hand rolls,stretch film rolls,machine rolls,industrial rolls etc..
    We have developed it into 5 shaft to be faster of changing paper core,much practical and cost effective in selling price. It is with paper core autoloading,5 shaft auto exchanging for rewinding,the speed is faster.

Video

Features:

1: Machine adopts LCD touch screen consists of “PLC+ transducer+ signal switch ”. The main electrical components are all premium quality.

2:The LCD touch screen is ergonomically design for simple operation and less-maintenance requires. It can be set as fully automatic production and manual mode.

3:The performance of the machine is very stable and reliable.

4:Automatic 5 shaft paper core change system,automatic cut off of rewind roll when reach the setting length,high output.


Machine data:

Machine name: Automatic 5 shaft cling film rewinding machine

Machine model:PPD-5SH450

Max mother roll width:450mm(adjustable)

Max mother roll diameter:400mm

Mother roll inner diameter:76mm(3inch)

Mother roll loading method:Pneumatic cylinder

Baby roll inner diameter:35mm,38mm,40mm (option)

Max baby roll length:150meters

Max rewinding speed:650m/min

Voltage:220v,380v415v,450v/3ph(option)

Power:4kw

Weigth:800kg

automatic 5 shaft cling film rewinder-3.jpg

automatic 5 shaft cling film rewinder-2.jpg




Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
