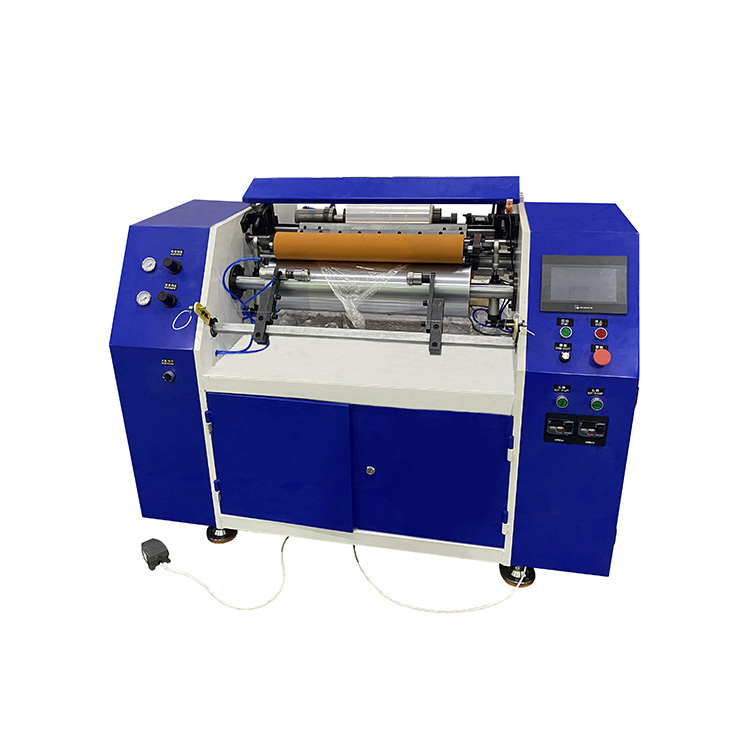

Semi automatic cling film rewinder with perforation function

  • PPD-CFRP450

  • Semi automatic cling film rewinder with perforation function is our newly developed semi automatic rewinder for producing perforated cling film rolls and standard cling film rolls.
    It can produce both perforated cling film rolls and standard cling film rolls,it is 2in1 rewinder model..

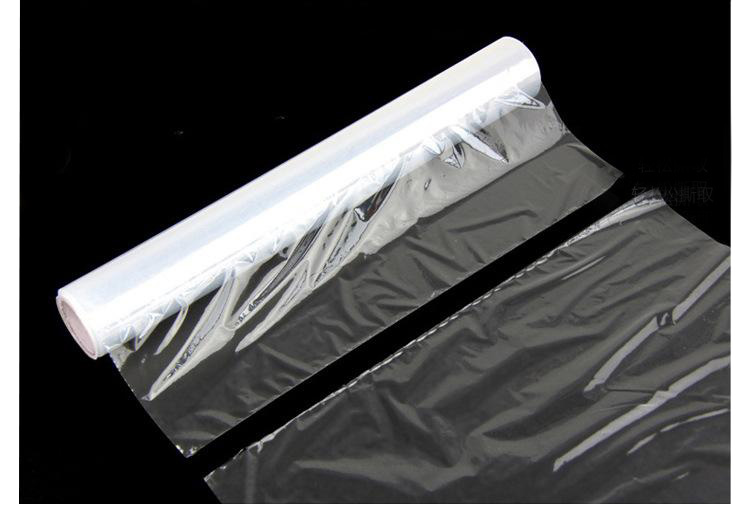

    The perforated cling film rolls has an easy tear line,the cling film can be easily torn off and used. Convenient.
    The perforated length can be adjusted in the touch screen, and the width can be 250mm or 300mm as buyer requirement.

Features:

1. Touch screen to set parameters. easy and convenient.

2. Semi automatic multi function model,compact and economical.

3. The servo motor controls the perforated length,correct and precise.

4. With automatic meter counting,the machine will stop automatically once reach the setted length.


Machine data:

Machine name:Semi automatic PE/PVC cling film rewinder

Machine model:PPD-CFRP450

Jumbo roll roll width:max450mm

Jumbo roll diameter:max 400mm

Jumbo roll ID: 76mm

Jumbo roll loading method:Pneumatic cylinder

Small roll ID: 30/35/38mm(option)

Small roll OD:max 120mm

Small width:max 450mm

Speed:max 600rpm/min

Voltage: 220/380/415/450v, 3ph(option)

Power: 2kw

Weight: 300kg

NOTE: ANY SPECIFICATIONS CAN BE CUSTOMIZED.





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
