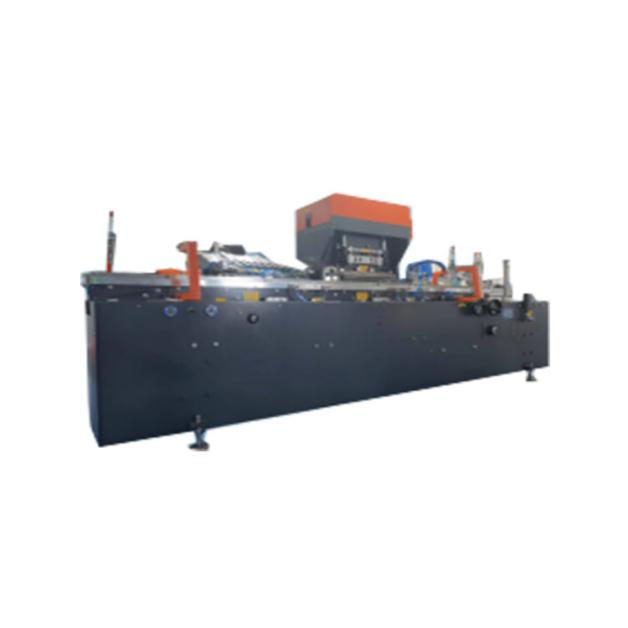

Automatic metal blade roll fixing and PVC roll attaching and plastic blade attach 3in1 Machine

  • PPD-MBPP80

  • Automatic metal blade roll fixing and PVC roll attaching and plastic blade attach 3in1 Machine is our new design 3in1 blade fixing machine.
    This machine is suitable for metal balde roll,steel blade roll fixing machine.
    This machine is suitable for the pvc roll,paper roll attaching machine.
    This machine is suitable for the plastic balde attach machine.

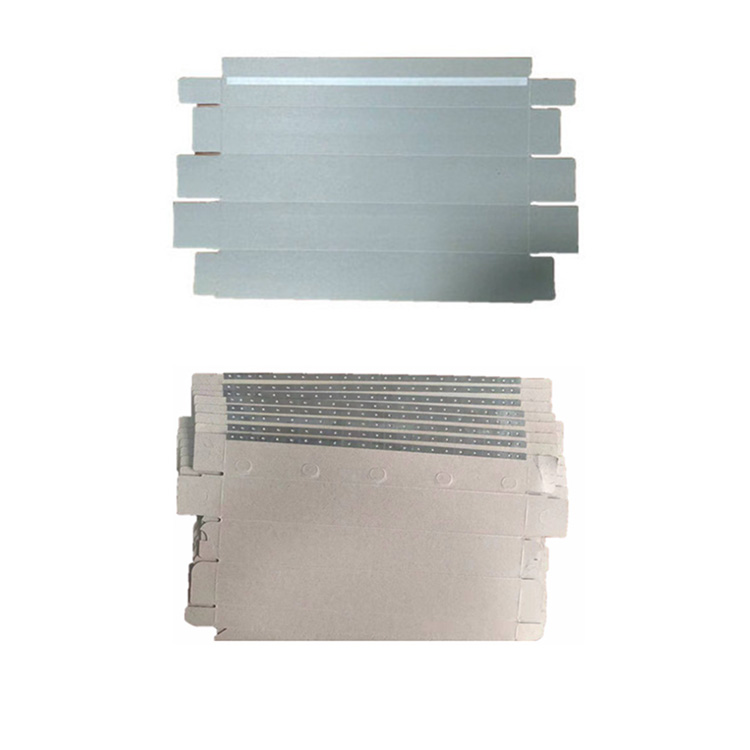

    This is one of new model for labor saved to put the metal cutter,plastic cutter on the packing box of aluminium foil roll and food cling wrap roll.
    It is an automatic model by PLC Program control,LCD touch screen for simple operation,the different size of width for aluminium foil roll and cling wrap roll box are acceptable.

Video

Features:

1: The color box cardboard is automatically divided and transported, sequentially from the bottom to the bottom. Manual feeding from above the storage bin, automatic feeding of cardboard without stopping the machine.

2: The conveyor, in conjunction with the feeding device, automatically transports cardboard, guiding and positioning the cardboard for transportation. Accurate positioning is achieved at the binding station below the mold.

3: The raw material roll of the tin saw blade is automatically fed by the feeding machine. Set parameters according to production needs.

4: Hydraulic power drives the upper and lower punching of the mold, and simultaneously binds the tin saw blade to the required position on the colored cardboard box.

5: Automatic sensing device, the color box paper is sprayed with hot melt adhesive by photoelectric counting and automatic sensing during the conveying process.

6: The plastic saw blade in the storage bin is grabbed by a mechanical arm and automatically adheres to the required position of the color box paper.


Technical data:

Model:PPD-MBPP80

Suitable raw material:tinplate roll,aluminium roll,steel roll,PVC roll,paper roll,plastic blade

Production ability: 30pc/ min - 80pc/ min

Saw blade length: 300-450mm,

Saw blade width:8-14mm

The position of the blade is ≦90mm from the side of the tray

Saw position:+0.3mm

Cardboard size (without tongue):L300-460mm,W235-330mm(can customized as buyer requirement)

Voltage: 380V,50hz

Total power 4kw

Machine size: 3200*1500*1700mm(LWH)

NOTE:Different specs can be customized.





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
