Paper Container Production Machine

  • PPD-PCP

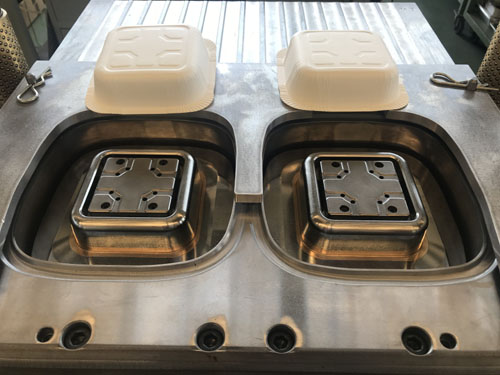

  • Paper container production machine is mainly produces paper tableware plate products.Such as paper lunch dish,paper plates,paper tray,different sizes and shapes can be produced by changing the mold.
    It is for high demand of packages products machine line, which the process of drying, hot-pressing, forming will be automatic continuous completed on the same machine,with high automatic of PLC+ Touch screen control whole process.
    The machine adopts high-efficiency booster cylinder ,which is faster and more environmentally friendly than hydraulic cylinders.

Video

Feeding Machine

Technicial Data:

Max unwind roll width 350mm500mm650mm
Max unwind roll diameter600mm600mm600mm
Feeding speed0-35m/min0-35m/min0-35m/min
Feeding length20-999mm20-999mm20-999mm
Feeding accuracy±0.3mm±0.3mm±0.3mm
Voltage220/380/415V option220/380/415V option220/380/415V option

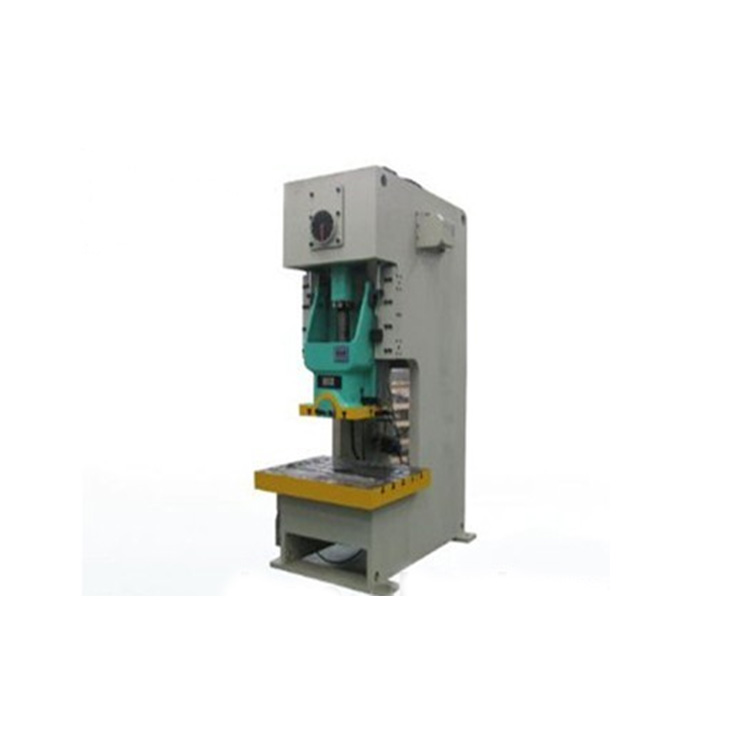

High Accuracy Press

Technicial Data:

ModelPPD-45TPPD-63TPPD-80T
Nominal pressure
450KN630KN800KN
Slide block strok100-260mm120-260mm140-260mm
Slide strike per minutes70-50/min70-50/min60-45/min
Max die set height270-400mm310-450mm325-450mm
Die set height adjustment60mm70mm80mm
Slide bottom size410x340mm480x400mm560x460mm
Stemhole size60x60mm60x65mm60x75mm
Bolster surface size810x440/990x750mm870x520/1000x800mm1000x600/1200x800mm
Total power5.5kw5.5-7.5kw7.5-11kw

NOTE:Different sizes can be customized.  m11-01.jpg






Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
