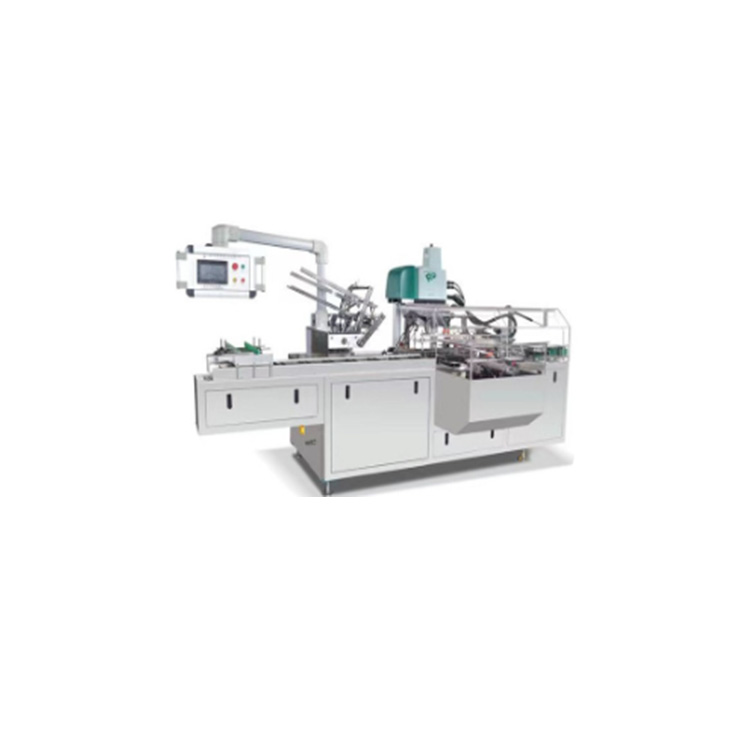

Fully automatic pop up foil-sheet tissue box packing machine can pack the material into box and close it continuously and automatically.
The max working speed is 80boxes per minute.
It can connect with the blister machine, shrink packaging machine to be a full automatic packaging production line.
Main Features:
1.Automatic feeding, box opening, boxing, batch No. printing, box sealing, waste rejecting, etc. are adopted. Featured by compact and reasonable structure, simple operation and adjustment.
2. Servo/step motor, touch screen, PLC control system and man-machine interface display make operation more clear and convenient. With high automation degree, the machine is more user-friendly.
3. The photoelectric eye automatic detection tracking system is adopted. No materials, no box supplied; No box, no feeding and no sealing.
4. With wide packing range and convenient adjustment, fast switching among various specifications and sizes can be realized.
Main technical parameters:
Name:Fully automatic pop up foil-sheet tissue box packing machine
Max Box Size:470x60x60mm(LxWxH) or as customized
Min Box Size:150x30x30mm(LxWxH) or as customized
Available paper:above 350gsm
Environment temperature:25+10°C
Noise:less than 80dB
Speed: 30-80 box per min
Voltage:380V,60hz
Max power:4.5kw
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
