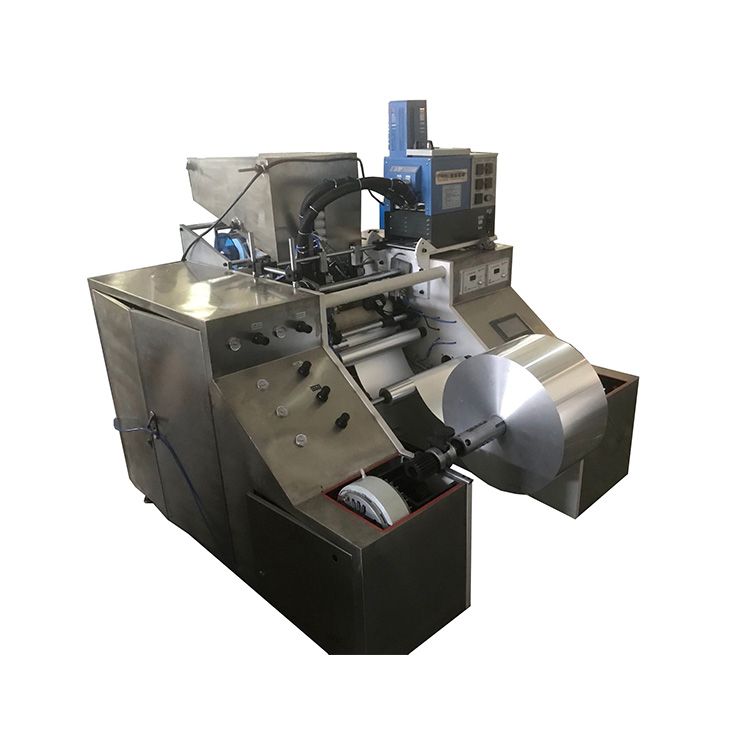

Automatic aluminium foil rewinder with automatic sticker function

PPD-ALS450

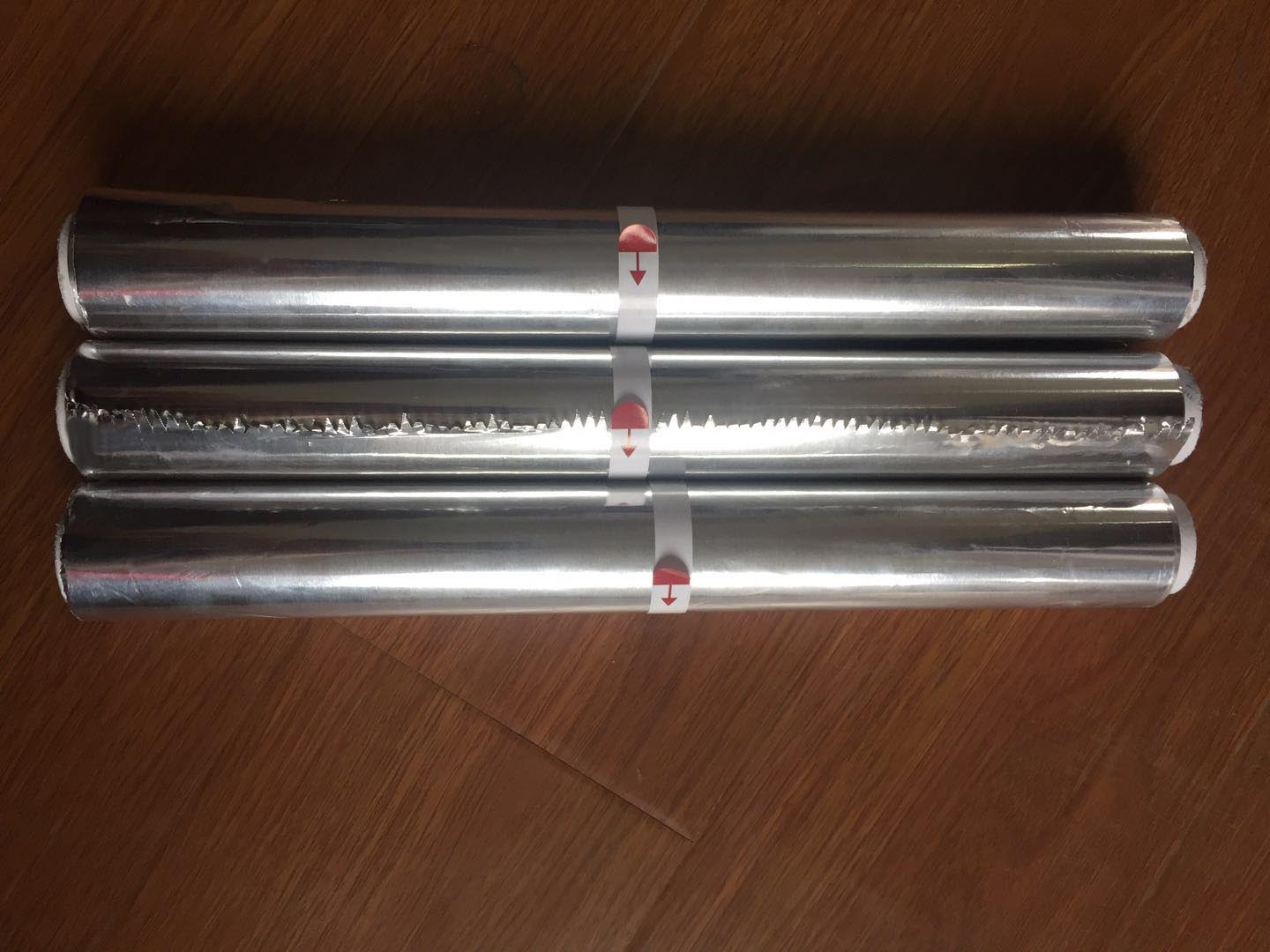

Automatic aluminium foil rewinder with automatic sticker function is our new designed model,it is professional in producing the small length aluminium foil roll,kitchen foil roll,household foil roll with tape sticker.
As a multi-function model,it can produce the small length silicon paper roll,baking paper roll,wax paper roll,bakery paper roll etc..
Hot melt adhesive automatic spraying system,safe and hygienic,convenient and fast.
Machine is with automatic paper core change,high output.
Our this model can make at max 100 meters product rolls.

Video

Features:

1:HMI,PLC touch screen,easy to operate.

2:Automatic hot melt adhesive automatic spraying system,fast and convenient.

3:Automatic paper core change system,high speed.

4: Automatic tape sticker system,save labor cost.

5:Stainless steel cabinet,safe and hygienic.

Machine data:

Machine name:Automatic aluminium foil rewinder with automatic sticker function

Raw material:aluminium foil/baking paper

Machine model:PPD-AFS450

Raw material width:200-450mm

Raw material diameter:max 600mm

Raw material ID:3/6inch(option)

Raw material loading method:Air shaft

Product roll ID:30/38mm(option)

Product roll length:max 100meters

Speed:max 180m/min

Voltage:220/380/415v,3ph

Power:5 kw

Net weight:1500kg

NOTE:Different sizes can be customized as buyer requirement.
