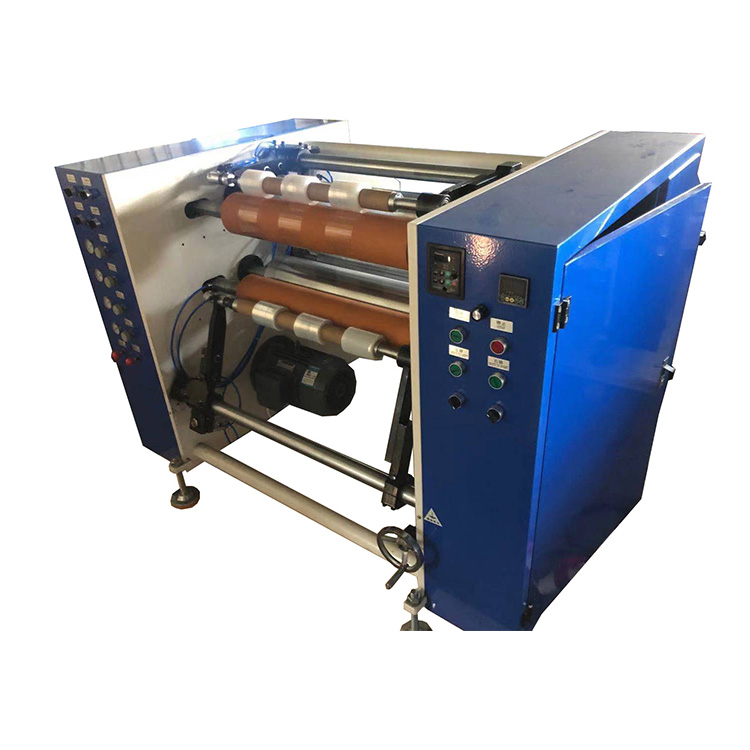

Air shaft model stretch film slitting rewinding machine

  • PPD-ASR500

  • Air shaft model stretch film slitting rewinding machine is our new stretch film slitting rewinding model.
    We use the air shaft slitting rewinding insteand of mandrel slitting rewinding,it is more easy and high production output.Compared with the standard stretch film slitting rewinding model,the efficiency is improved by at least 30%.
    Machine can also do the standard stretch film rewinding as buyer requirement.

Features:

1:Air shaft slitting rewinding model,compared with the standard stretch film slitting rewinding model,the efficiency is improved by at least 30%.

2:With adjust the slitting knife width,can get different width of product rolls.

3:As a multi-function model,machine can also do the standard stretch film rewinding as buyer requirement.

4:Automatic meter counting,machine will stop once reach the setting length.


Machine data:

Machine name:Air shaft model stretch film slitting rewinding machine

Machine model:PPD-ASR500

Jumbo roll width:500mm

Jumbo roll outer diameter:400mm

Jumbo roll inner diameter:76mm(3inch)

Jumbo roll loading method:Pneumatic cylinder

Small roll inner diameter:38,50,76mm(option)

Small roll width:50mm to max jumbo roll width

Small roll loading method:Air shaft

Speed:max 600rpm/min

Voltage:220/380/415/450v,3ph(option)

Power:2.37kw

timg (7).jpg





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
