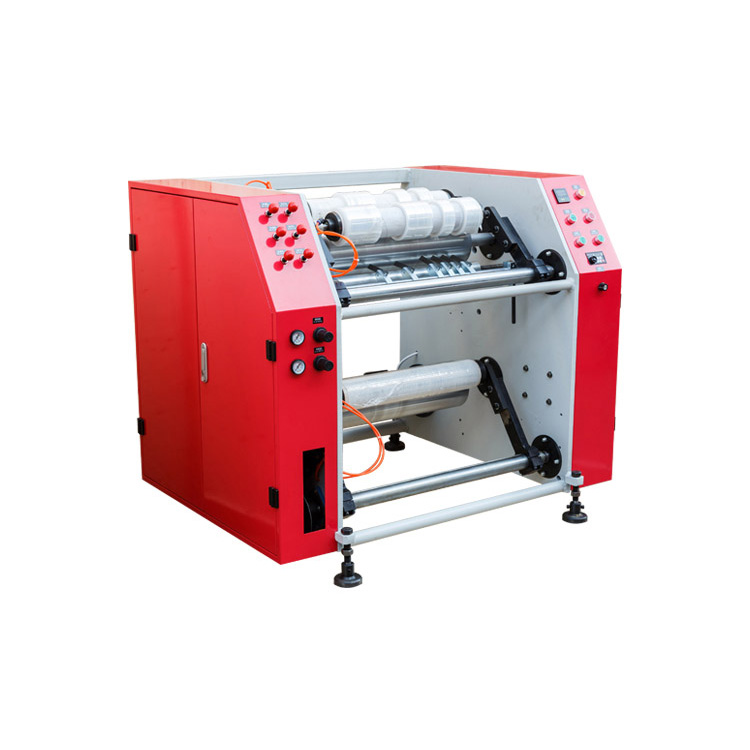

2 shaft semi automatic stretch film slitter rewinder

  • PPD-SFR500

  • 2 shaft semi automatic stretch film slitter rewinder is designed for slitting jumbo to make specified quantity of mini-rolls with minimal roll width 50mm. The stretch film slitter rewinder can normal rewind stretch film from Jumbo roll to small rolls.
    This model can do rewinding system and slitting rewinding system, so the equipment still has a wide range of applications.
    It is suitable for PE stretch film,PE cling film,industrial stretch etc..

Video

Features:

1- It is suitable for rewinding and slitting of stretch wrap film,industrial film and cling film etc..

2- The machine is simple in structure, easy to operate, and basically requires no maintenance.

3- The width of slitting knife can be adjusted easily.

4- By rewinding, it is possible to better eliminate a series of problems such as bubbles, unevenness, and unevenness of the film.

5- Machine is with automatic meter counter.


Machine data:

Machine name: 2 shaft semi automatic stretch film slitter rewinder

Machine model:PPD-SFR500

The max width of mother roll:500mm(can do 1000mm width or as buyer requirement)

The max diameter of mother roll:400mm

The inner diameter of mother roll :76mm(3inch)

The loading method of raw material:Pneumatic cylinder

The inner diameter of product roll :38,50,76mm(option)

The width of product roll:50mm to max mother roll width(adjustable)

Max rewinding speed:600rpm/min

Voltage:220/380/415/450v,3ph(option)

Power:2.37kw

stretch film slitter rewinder-6.jpg

stretch film slitter rewinder-7.jpg





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
