Slitting&Rewinding Machine

Features:

1: Whole machine is centrally controlled by PLC and the touch screen man-machine interface is used for centralized operation of the whole machine.

2: Unwinding and unloading of the machine adopts air-expanding shaft unloading, pneumatic locking, and the material roll starts to rise and fall, which is convenient for loading and unloading.

3: The unwinding EPC rectifying device can accurately control the end face accuracy.

4: The slitting machine adopts circular knife and straight knife slitting device, the end face is neat and beautiful.

Machine data:

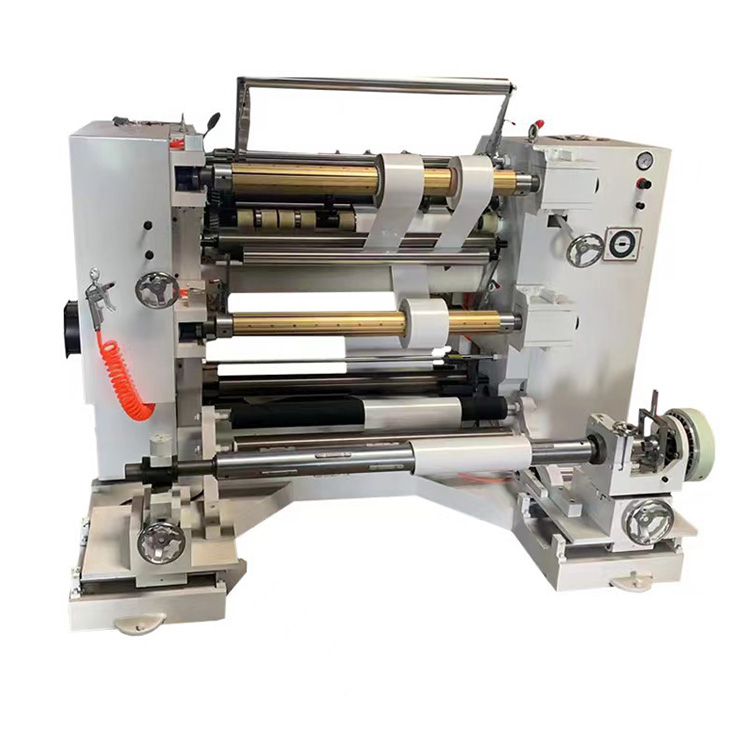

Machine name: Window film slitting machine

Machine model:PPD-WFS1800

Maximum Width: 1800 mm

Maximum Mother Reel Dia: 800 mm

Slitting Width (Standard): Max 1800mm

Slitting knives：10pcs

Maximum Rewind Diameter: 600mm dia.

Rewind Core Diameter : 76mm

Cutting Speed:  max 200M / per minute

Voltage: 220/380/415/440v,3ph

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
