Slitting&Rewinding Machine

Features:

1. Adopt four-axis automatic exchange coiling and continuous coiling to improve work efficiency.

2. Frequency conversion stepless speed regulation, equipped with three-stage counter, can automatically decelerate and stop when running at high speed.

3. The unwinding tension adopts pneumatic brake control, and the rewinding tension adopts dual control. It is equipped with a clutch and an independent sliding device for the rewinding shaft, and the tension can be adjusted freely.

4. Equipped with arc-shaped stretching rollers, which can effectively stretch the substrate.

5. (Optional) Automatic labeling function, strip stationery tape function.

Machine data:

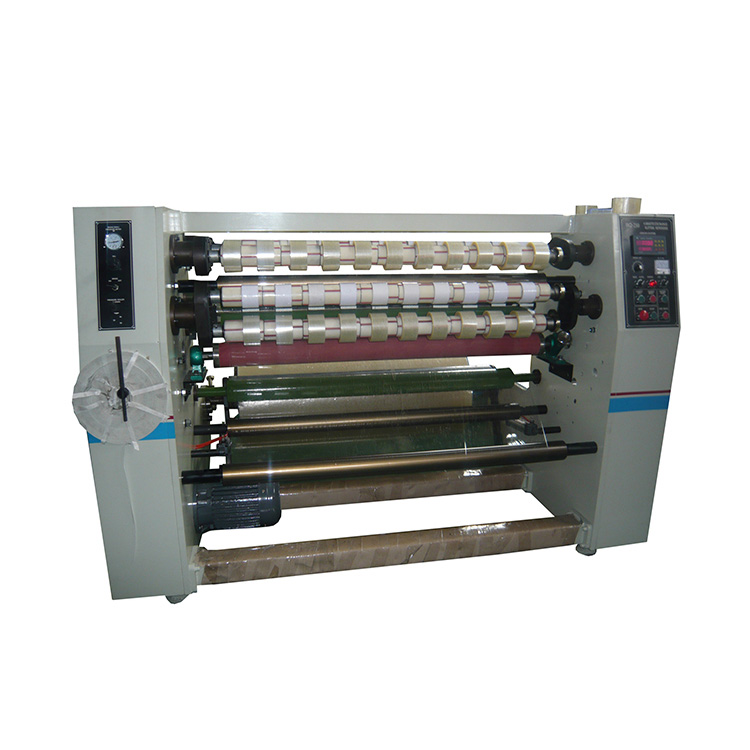

Machine name: Medical tape slitter rewinder

Machine model:PPD-MTSR1100

Machine width:1100mm

Unwinding diameter:max 800mm

Slitting width:min 12mm

Rewinding diameter:

(25mm shaft)4 shafts exchange:max 75mm

(76mm shaft)4 shafts exchange:max 150mm

(25mm shaft)2 shafts exchange:max 320mm

Machine speed:0-130m/min

Machine size:2450*1250*1450mm

Machine weight:about 1100kg

Note:Different size can be customized as buyer requirement.(1300mm or 1600mm or others)

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
