Slitting&Rewinding Machine

Features:

1. Adopting four axis fully automatic exchange coiling and continuous coiling to improve work efficiency.

2. Variable frequency stepless speed regulation, equipped with a three stage counter, can automatically slow down and stop when running at high speed.

3. The unwinding tension is controlled by pneumatic brakes, while the unwinding tension is controlled by dual controls. It is equipped with a clutch and an independent sliding device for the unwinding shaft, allowing for free adjustment of tension.

4. Equipped with curved stretching rollers, which can effectively stretch the substrate

Main data:

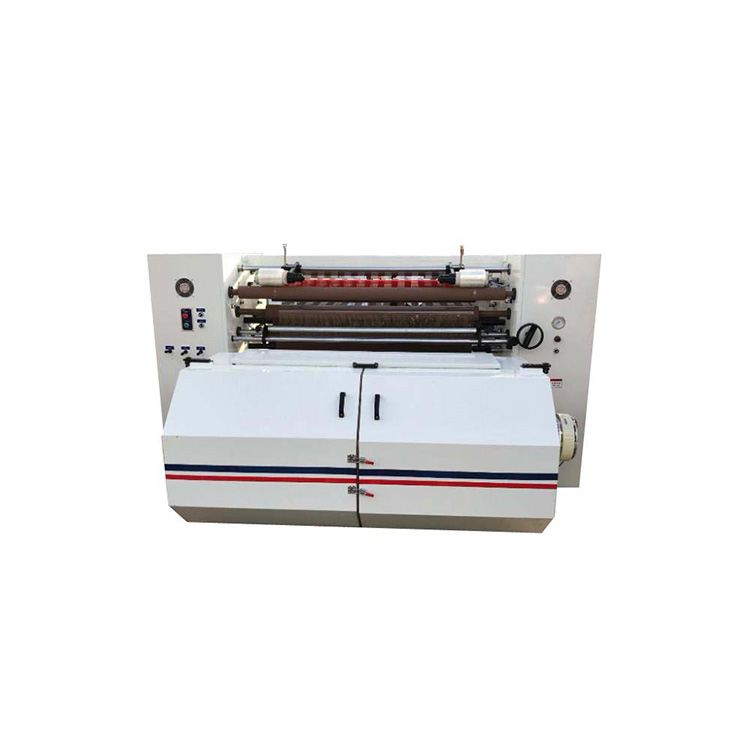

Name: Bopp opp adhesive tape slitter machine with cover

Model:PPD-BOPP1600

Mother roll width:1600mm

Unwind diameter:max 800mm

Slitting rewinding roll diameter :220mm

Slitting rewinding roll width:12mm-1600mm

Speed:260m/min

Slitting rewinding paper tube diameter:1.5/2/3inch

Slitting blade:razor knife

Volatge：220/380/415V,50Hz (option)

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
