Slitting&Rewinding Machine

Features:

1. The host frequency conversion speed regulation maintains the balanced operation of the machine during acceleration.

2. Automatic meter counting, inflation shaft unwinding and rewinding, easy to operate.

3. The automatic correction system is optional, allowing irregular materials to be cut normally.

4. The round knife is used for longitudinal cutting, resulting in a smooth and aesthetically pleasing product.

Machine data:

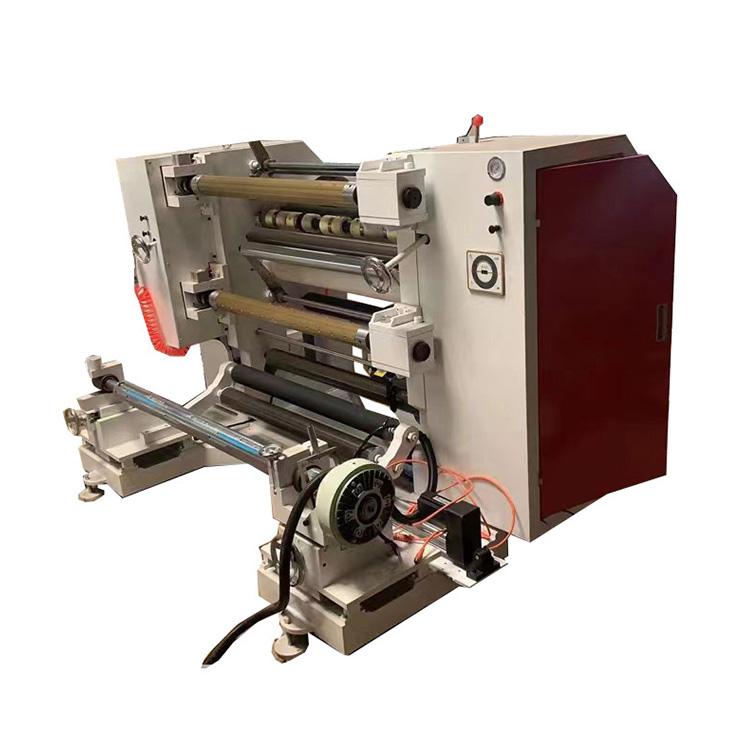

Machine name:PET film kraft paper slitting rewinding machine

Machine model:PPD-PK1600

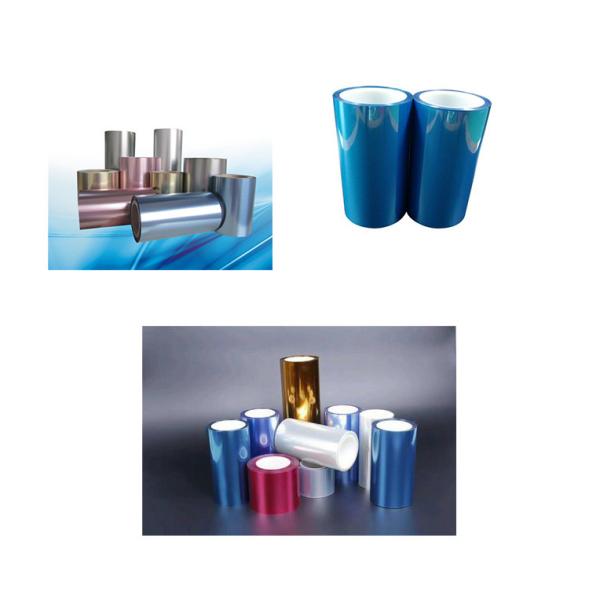

Material:PRT film,kraft paper,plastic film,nonwoven etc.

Mother roll width:1600mm

Mother roll inner diameter:3inch,76mm

Mother roll outer diameter:max 600mm

Slitting knife:10pcs

Baby roll width:25-1600mm max

Baby roll inner diameter:76mm

Baby roll outer diameter:450mm option

Production speed:160m/minute（deponds on raw material）

NOTE: ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.

Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
