Stretch Film Rewinder

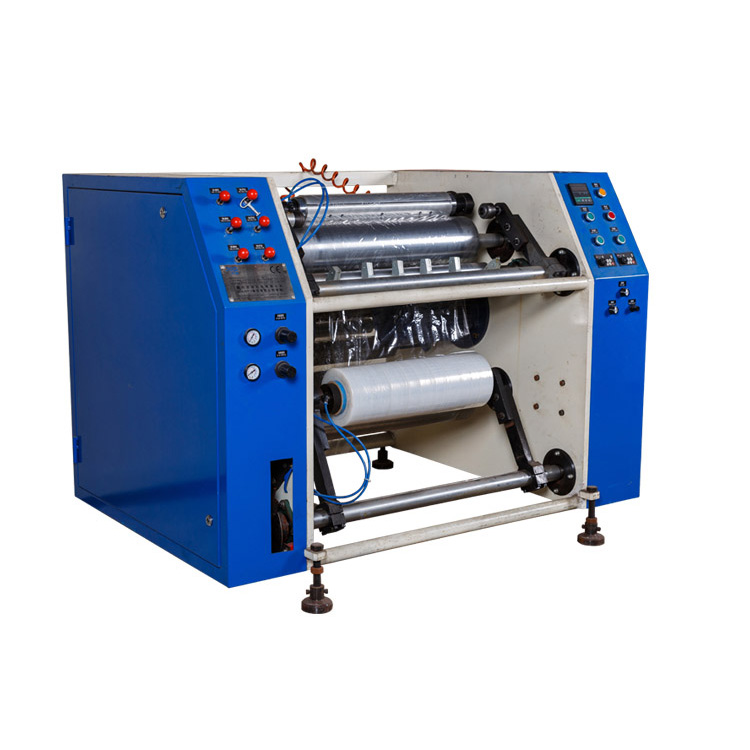

Two shaft semi automatic coreless stretch film rewinder
-
PPD-CSRP5
-
Two shaft semi automatic coreless stretch film rewinder is customized for customers specifically for rewinding coreless stretch film products. The specially designed special shaft winding method replaces the original mandrel winding method, machine can obtain coreless stretch film products through the special shaft.
As a multifunctional machine, machine can also produce stretch film products with core.The machine can also be used as a standard semi automatic stretch film slitting machine.
The machine is suitable for stretch film products and cling film products.
Video
Machine data:
Machine name: Two shaft semi automatic coreless stretch film rewinder
Machine model:PPD-CSRP5
Raw material roll width:max 500mm
Raw material OD:max 400mm
Raw material roll ID: 76mm
Raw material roll loading way:Pneumatic cylinder
Product roll ID: 76/50/38mm(option)
Product roll OD:max 100mm
Product width:max 500mm
Speed:max 600rpm/min
Voltage: 220/380/415/450v, 3ph(option)
NOTE: ANY SPECIFICATIONS CAN BE CUSTOMIZED.
