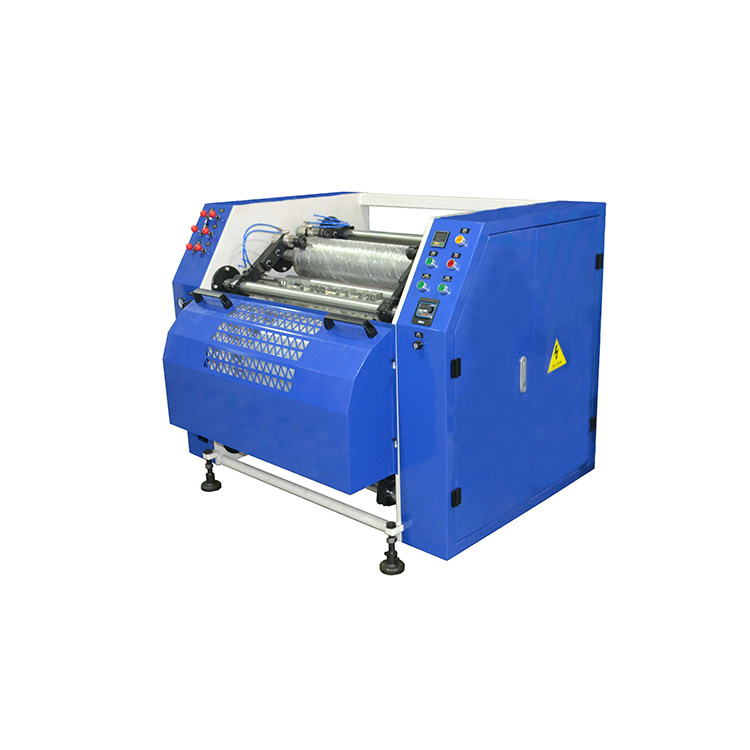

CE covered stretch film slitting rewinding machine

  • PPD-CESR500

  • CE covered stretch film slitting rewinding machine is designed for slitting jumbo to make specified quantity of mini-rolls with minimal roll width 50mm with CE covered.
    The jumbo roll is protected by the protection cover to ensure the safet of the operator will not hurt by the jumbo roll if fall down.It is safe and CE approved.

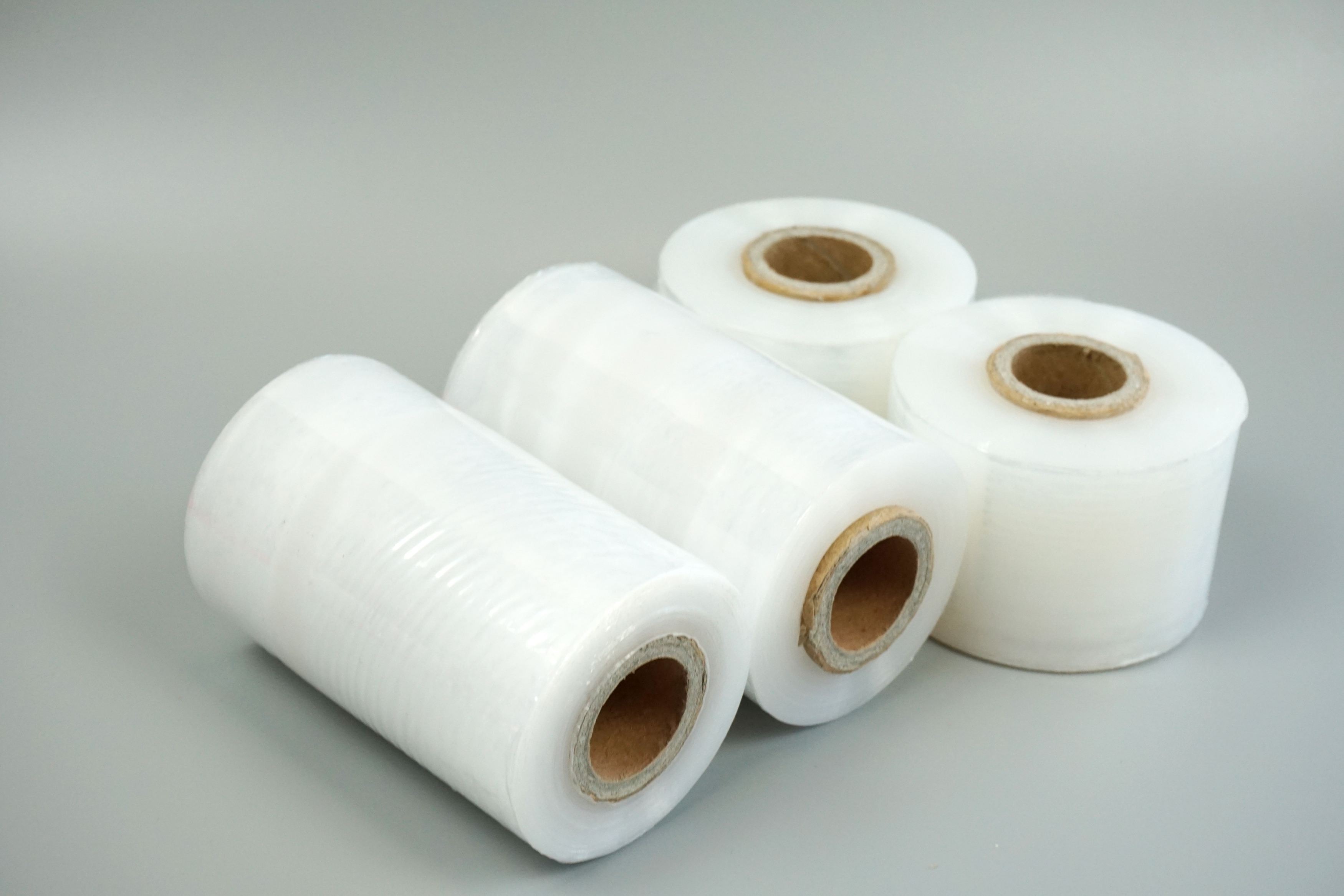

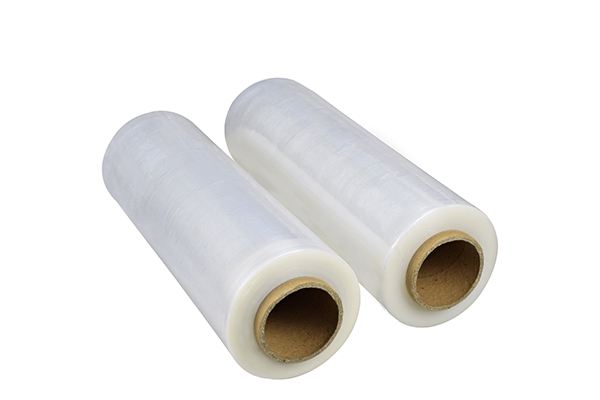

    As value added model,the CE covered stretch film slitting rewinding machine can normal rewind stretch film from Jumbo roll to small rolls,as 2kg,3kg max up to the 18kg product rolls.
    It is suitable for PE stretch film,PE cling film,PVC cling film,industrial stretch film etc..

Video

Features:

1-CE covered,safe and high qulaity.

2- It is suitable for PE stretch film,PE cling film,PVC cling film,industrial stretch film etc..

3- Machine is easy to operate, basically requires no maintenance.

4- The width of slitting knife can be adjusted easily.

5- Machine is with automatic meter counting system,PLC control.

6-Machine width can be 1000mm,1500mm as buyer requirement.


Machine data:

Machine name:CE covered stretch film slitting rewinding machine

Machine model:PPD-CESR500

The width of parent roll:500mm(can be 1000mm width or as buyer requirement)

The diameter of parent roll:max 400mm

The inner diameter of parent roll :76mm(3inch)

The loading way of parent roll:Pneumatic cylinder

The inner diameter of baby roll :38,50,76mm(option)

The width of baby roll:50mm to max parent roll width(adjustable)

Max rewinding speed:600rpm/min

Voltage:220/380/415/450v,3ph(option)

Power:2.37kw

timg (7).jpg

timg (4).jpg





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
