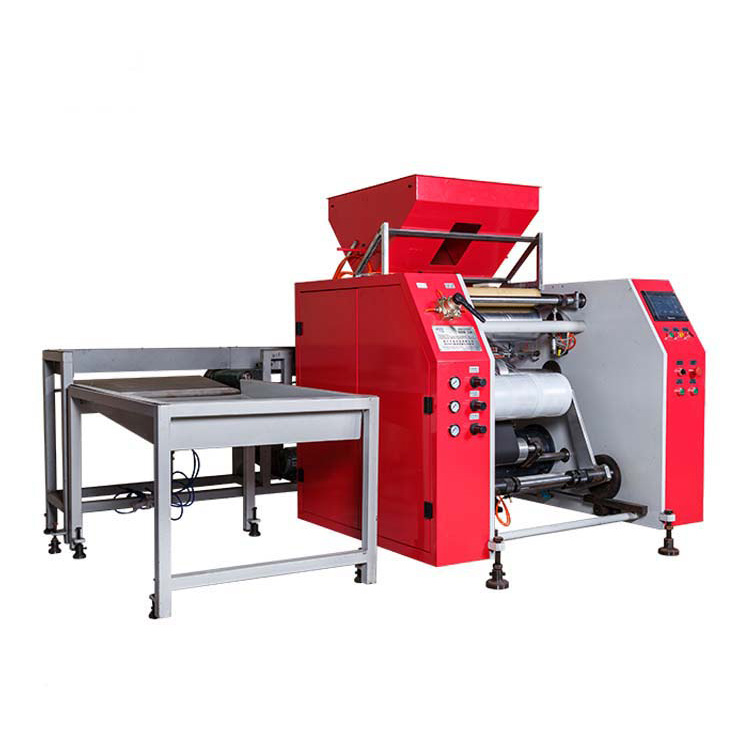

Automatic 3 shaft stretch film rewinder

  • PPD-3SH500

  • Automatic 3 shaft stretch film rewinder is designed model for producing hand rolls,stretch film rolls,machine rolls ,PVC cling film rolls and PE cling film rolls etc..
    Machine is automatic feed, cut, and change roll and user-friendly interface.

Video

Features:

1. Automatic feed, cut, change roll with PLC control.

2. Three Shaft type automatic rewinder.

3. H.M.I. for accurate length and precise control,easy to operate,user friendly.



Machine data:

Machine name: Automatic 3 shaft stretch film rewinder

Machine model:PPD-3SASFR

Maximum parent roll width:500mm(adjustable)

Maximum parent roll diameter:400mm

Parent roll inner diameter:3inch(76mm)

Parent roll loading:Pneumatic cylinder

Baby roll inner diameter: 2/3inch(option)

Baby roll outer diameter:maximum 150mm

Maximum rewinding speed:900m/min

Voltage:220/380/415/450V,3ph

Net weight:850kg

Automatic 3 shaft stretch film rewinder-4.jpg



Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
