4 Side Seal&Pack Machine

Features:

1. Color touch screen operation interface; scientific 4-axis servo drive system; PLC programmable controller intelligently controls the operation of the whole machine, which has the advantages of precise film feeding, stable transmission of materials, and precise bag cutting.

2. Double packaging material feeding rack, suitable for paper + film, paper + paper bag making method.

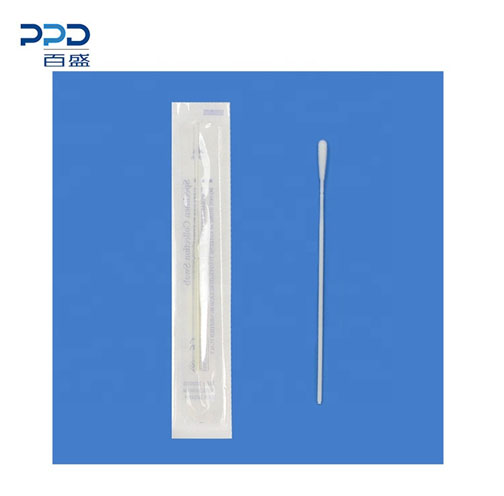

3. Applicable: automatic bag-making and four-side sealing packaging for cotton swabs, disposable nasopharyngeal sampling swabs, etc.

4. Innovative design: independent guide column die set, mobile synchronous heat sealing system, the temperature of the sealing surface is more uniform and stable, and the instant sealing effect is better.

Process flow:

Manual placement → bagging → bag making → sealing → cutting → packaged product delivery

Machine data:

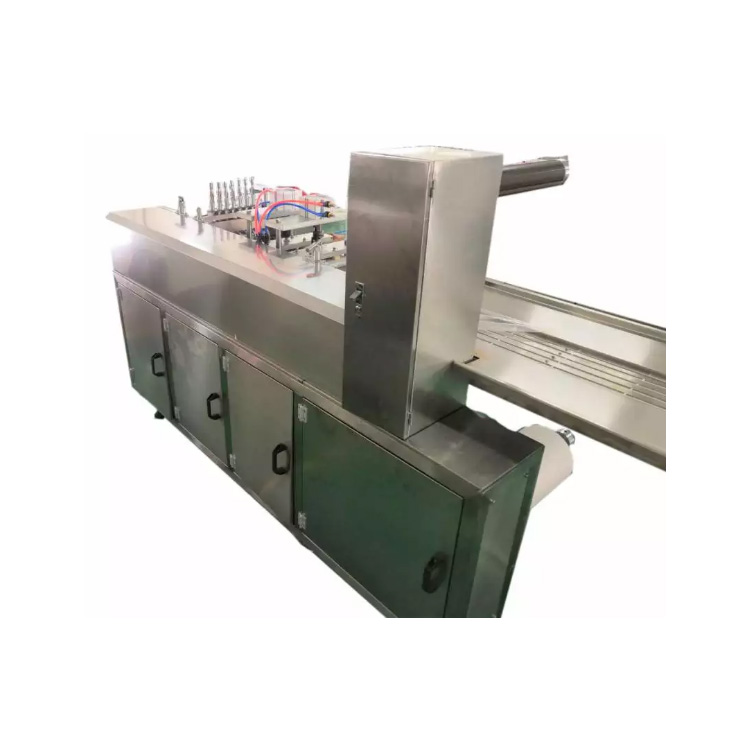

Machine name: Sterile Medical Nasopharyngeal Specimen Collection Swab Rayon Cotton Swab Nucleic Acid Detection Swab Packaging Machine

Machine model: PPD-SPM180

Bag size: length 195 mm × width 40 mm (one out of 6 bags)

Material size: length 150 mm × diameter about 2 mm

Processing capacity: 120-180 bags/min

Packaging film material: paper + transparent composite film Φ≤320mm, width 240-260mm

Total power: 220v 50Hz motor 2.2KW heating 3.3KW

Machine weight: 650 kg

Dimensions: length 4000 × width 1400 × height 1600mm

Packing size: length 2600 × width 1900 × height 1800mm

NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS CUMTOMER REQUEST.
