4 Side Seal&Pack Machine

Features:

1.The uniquely designed coating structure ensures high production efficiency of the coating equipment.

2.The uniquely designed bag making structure can produce packaging bags with text patterns on both sides.

3.Specially designed membrane bag structure,scientifically stable heat sealing structure.

4.The mechanical structure of the entire production line is clear at a glance and easy to maintain.

5.PLC control,newly developed software system controls overall operation, easy to operate.

Machine data:

Machine name: ODF dietary supplements film oral dissloving film production line

Machine model: PPD-ODF

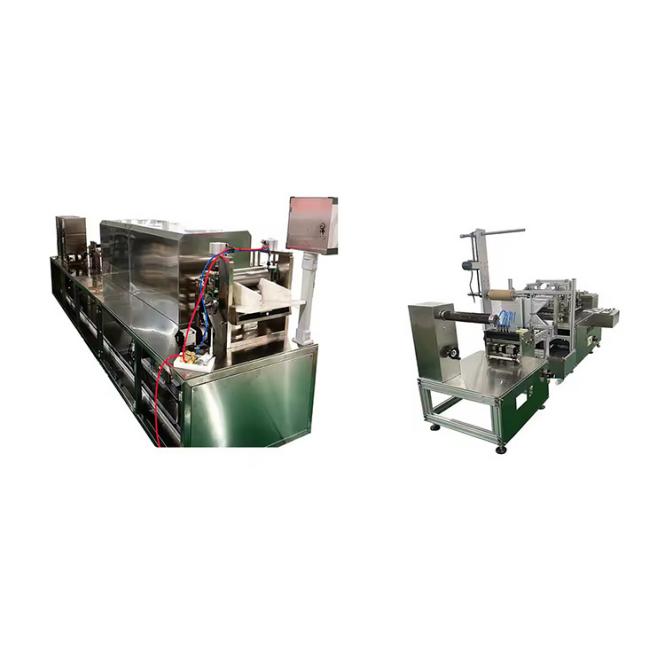

This production line consists of two machines,one is an oral dissloving film coating machine and the other is an oral dissloving film packaging machine.

Machine name: oral dissolving film coating machine

Max product width:300mm

Product thickness:0.02-0.1mm

Speed:0.01-1m/minute (depending on different products)

Bottom film width:amx 360mm,OD≤350mm,ID 3inch

Power:motor1.5KW,heater16KW

Voltage

Gas consumption:≥30m3/h(self provided),pressure:0.6-0.8Mpa

Machine weight:1800 kg

Dimensions:L5300mm*W1310mm*H1750mm

Machine name: oral dissolving film packaging machine

Product sizes:Length 40mm*Width 25mm or as buyer requirement

Packaging sizes:Length 86mm*Width 45mm or as buyer requirement

Speed:120pcs/minute (depending on different products)

Voltage:220v,50hz

NOTE:ANY SPECIFICATIONS AND BE CUSTOMIZED AS BUYER REQUIREMENT.
