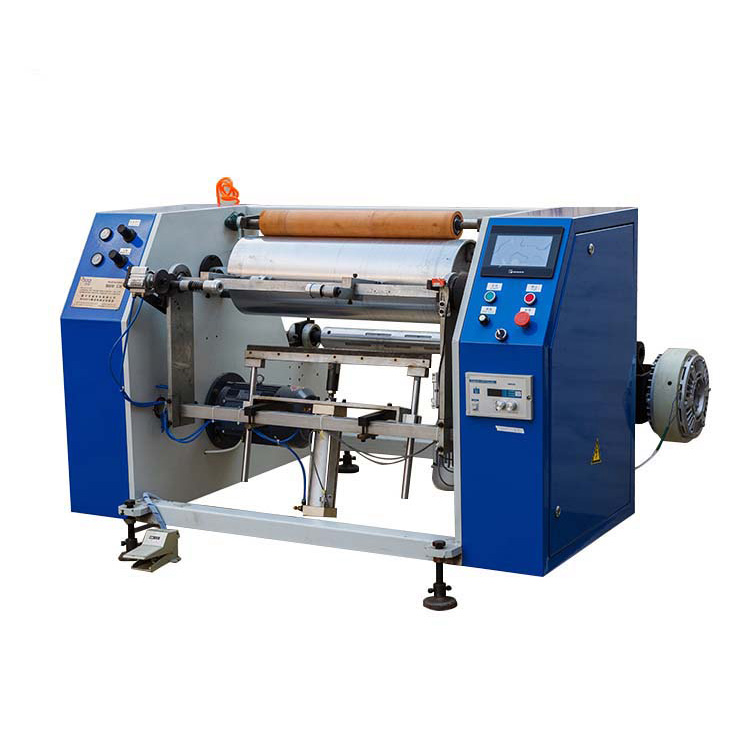

Semi automatic 2 shaft baking paper rewinding machine is our latest design model to make the baking paper roll.silicon paper roll,paper foil roll etc..
Machine is 2 shaft changing rewinding,high speed and economic.
Features:
1:Machine is with two shaft rewinding,high speed.
2:Set the machine data in the touch screen,easy to operate.
3:Machine is with auto meter counting system,once reach the setting length,machine auto stop and cut and start rewinding.
4:Latest model 2 shaft rewind the baking paper,silicon paper,special design of the machine roller.
Machine data:
Model:PPD-BR450
Raw material:Baking paper
Jumbo roll width:300-450mm(adjustable)
Jumbo roll ID:76mm
Jumbo roll OD:max 600mm
Product roll width:300-450mm(adjustable)
Product roll ID:30/35/38mm(option)
Product roll length:3-300meters
Speed:max 300rpm/min
Voltage:220/380/415/450v,50hz,3 phase
Total power:2.2kw
Machine size:1800*1750*1350mm
NOTE:ANY SPECIFICAITONS CAN BE CUSTOMIZED AS BUYER REQUIREMENT
Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.
