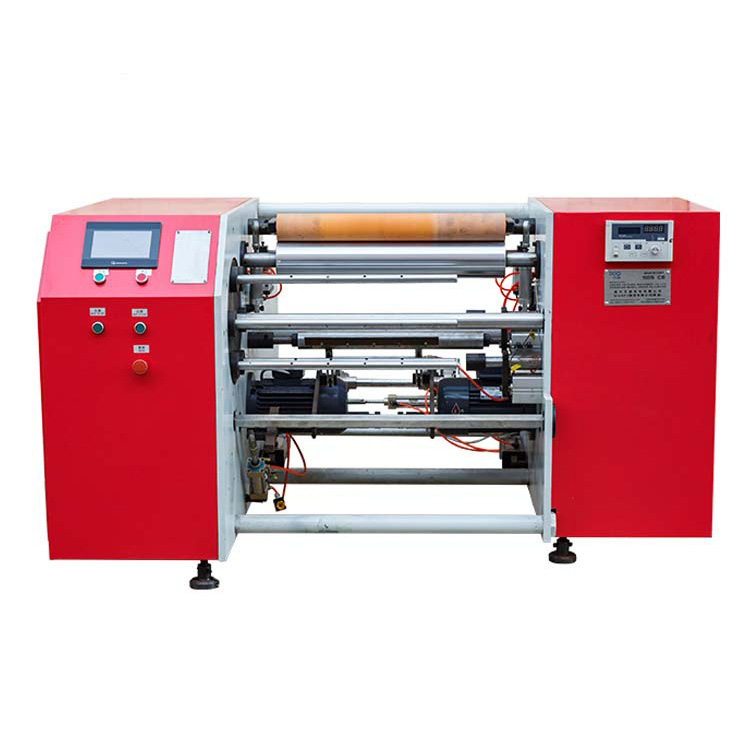

Automatic coreless baking paper rewinder

  • PPD-CSP450

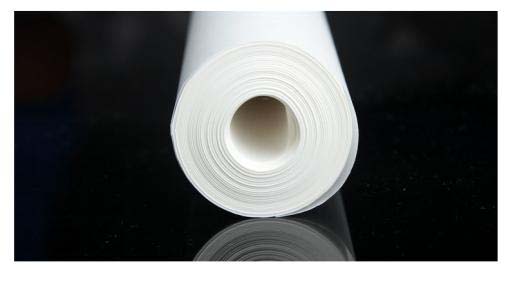

  • Automatic coreless baking paper rewinder is designd model to rewind the baking paper,silicon paper,wax paper,gift paper,book cover jumbo roll to small product roll without paper core.
    Machine is equipped with 6 shaft rewinding system,it is more efficiency and high output.

Video

Features:

1:PLC touch screen,easy to operate,automatic meter counting system.

2:Automatic magnetic powder brake system.

3:Automatic coreless rewinding system,which can reduce the cost.

4:6 shaft rewinding system,high output and make more economic benefits.


Machine data:

Machine name: Automatic coreless baking paper rewinder

Machine model:PPD-CSP450

Raw material rell width:maximum 450mm(adjustable)

Raw material rell diameter:maximum 600mm

Raw material rell inner diameter:76mm(3inch)

Raw material loading way:Pneumatic cylinder

Product roll inner diameter:coreless 25mm (option)

Product roll length:maximum 60meters(adjustable)

Production speed:maximum 600rpm/min

Voltage:220/380/415/450v,3ph(option)

Power:2.5 kw





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
