Food Paper Rewinder

Features:

1:Automatic raw material loading system.

2:Automatic magnetic powder brake system.

3:English and Chinese language interface dispaly,Siemens PLC touch screen HMI,operate easily.

4:By changing the slitting knife width,can produce the product roll as buyer requirement.

5:This model can also slit rewind jumbo roll to small product ATM roll,thermal roll,pos roll,cash register roll,lottery ticket roll, doctor exam, pressure sensitive labels, credit card receipt paper roll, fax paper, computer bill, medical record paper roll etc..

Machine data:

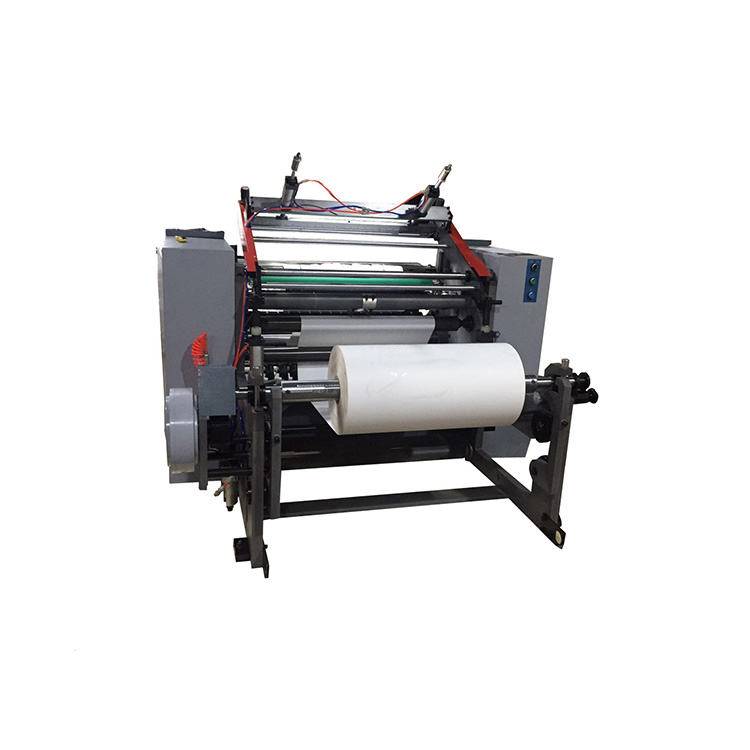

Machine name:Automatic silicon paper slitter rewinder

Machine model:PPD-Y900

Raw material roll width:900mm

Raw material roll diameter:max 1200mm

Raw material inner diameter:76mm(3inch)

Raw material loading method: Air shaft

Product roll inner diameter:25,38,50mm (option)

Product roll outer diameter:max180mm

Product roll standard slit width:300mm/450mm(57mm/79mm option)

Max working speed:150m/min

Voltage:220/380/415/450v,3ph(option)

Power:4 kw
