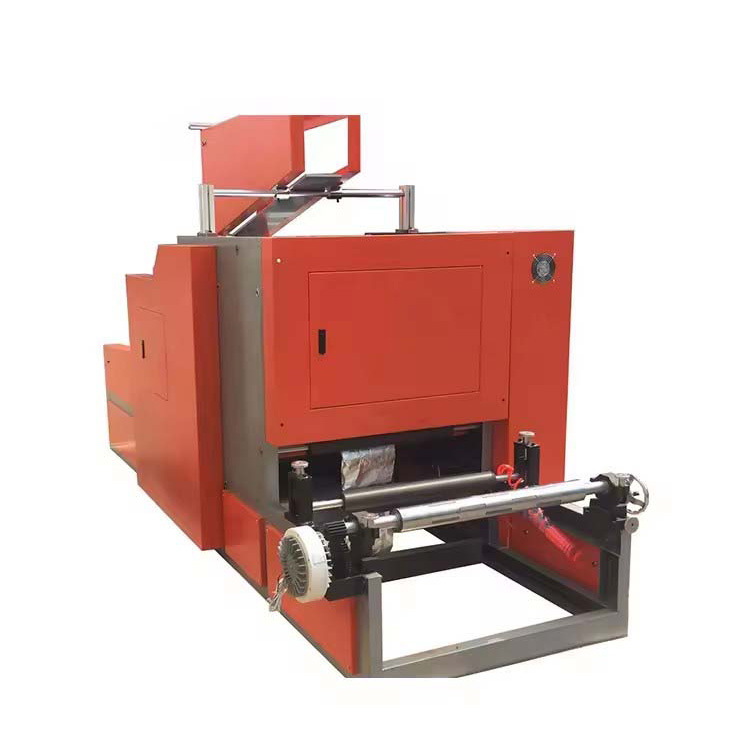

Fully Automatic Baking Paper Rewinding Machine

  • PPD-BPR450

  • Fully automatic silicon paper baking paper rewinding machine is an automatic machine to feeding,gluing,rewinding,cutting, and automatic deliver the finished product by conveyor belt.
    It is suit for rewinding of silicon paper,baking paper,wax paper and any other food paper.
    It is high precision,high efficiency and simple in operating.

Video

Features:

1. High precision,high efficiency and simple in operating.

2.Auto gluing, auto exchanging

3. PLC control, touch screen operation, friendly HMI system.



Main data:

Max. unwind roll width:450mm

Max. unwind roll OD:400mm

Max.unwind roll paper core ID:76/152mm option

Rewind roll width:max450mm

Rewind roll paper core ID:35/38mm option

Rewind roll length:3-150m

Producing speed:max2.5m/s

Magnetic powder braker:25Nm

Magnetic powder clutch:12Nm

Total power:4Kw

Voltage:220/380/415V option





Since 1987, Jiaxing Patsons Machinery Co Ltd is focused on different packaging machinery, and packaging material converting machinery etc. Through continuous efforts, we have been the professional in the research & production of stretch film machine, cling film machine, aluminium foil machine, alcohol pad machine, wet wipes machine, paper roll slitter rewinder, paper processing machinery, printing machinery and all kinds of customized packaging material converting machinery.

Patsons china factory Patsons china factory
Patsons china factory certificate
Patsons china factory certificate

FAQ

We have many models of machine, please contact our sales office who will assist you to select the best machine to suit your requirements.
Yes. We have a professional RD team with rich experience to design and manufacturing.
Machine with one year warranty, if any parts broken, we will send new spare parts to buyer via DHL within 24 hours, life-long maintenance.
3 weeks for standard model machine, 30 working days for customized model.
Free fumigation export plywood cases
By sea, by air, by train or others
Due to the Cover-19, we provide online video call for installation guide!
