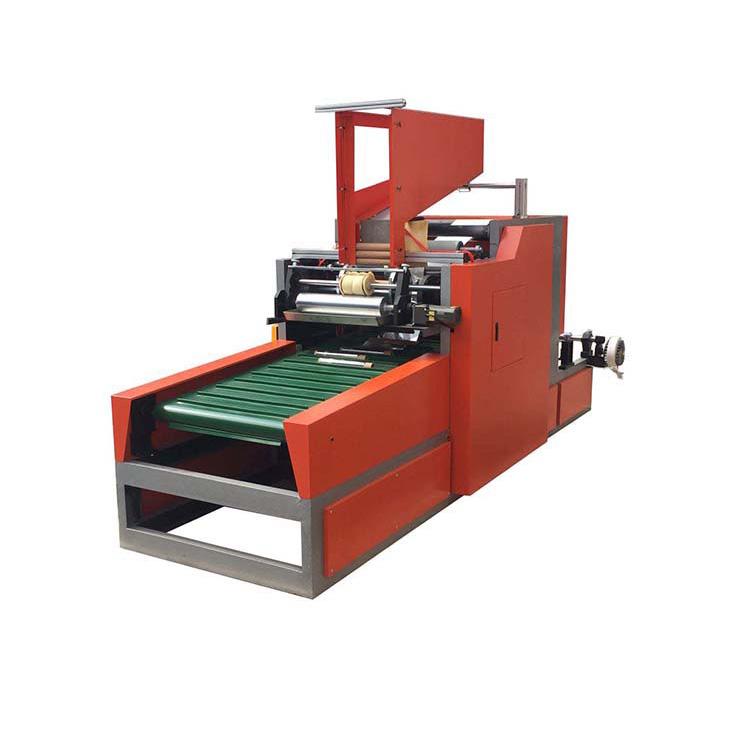

Full Automatic Silicon Coated Paper Bakery Paper Rewinder is new designed model of automatic machine to feeding,gluing,rewinding,cutting,paper core changing,automatic deliver the finished product roll by conveyor belt.
It it fit for rewinding of silicon coated paper,bakery paper,silicon paper,baking paper,wax paper and any other food paper.

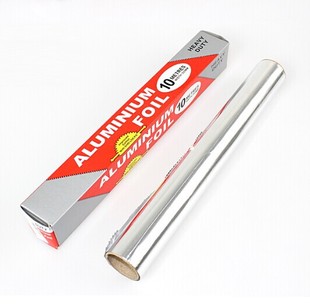

As a addtional fcuntion,this model can rewinding of the aluminium foil,kitchen foil,house foil etc..
It is simple in operating and high production output.
Features:
1.Automatic core loading,paper core changing,gluing,slitting and rewinding of foil rolls.
2.Complete with meter cutting length control.
3.PLC control,touch screen operation,friendly HMI system.
Main data:
Mother roll width:200mm-450mm
Mother roll OD:600mm
Mother roll core ID:76/152mm option
Baby roll width:200mm-450mm
Baby roll paper core ID:25/30/35/38mm
Baby roll length:3-150m
Producing speed:max2.5m/s
Magnetic powder braker:25Nm
Magnetic powder clutch:12Nm
Total power:4Kw
Voltage:220/380/415V(option)
Note:Any specifications can be customized as buyer requirement.
