Food Paper Rewinder

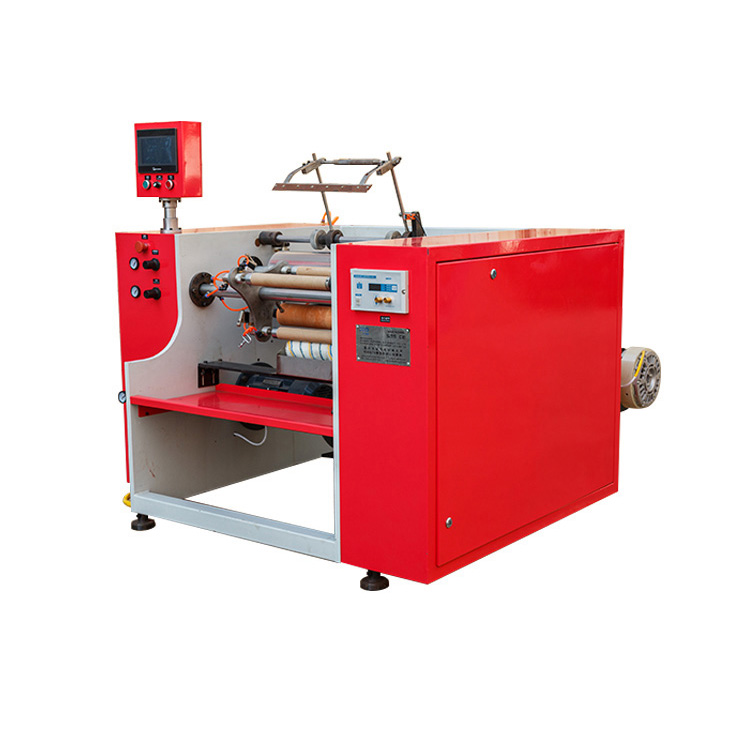

Semi auto 3 turret baking paper rewinding machine
-
PPD-SAF450
-
Semi automatic 3 turret baking paper rewinding machine is new designed model to rewind the mother roll baking paper.silicon paper,wax paper,wall paper and siliconized paper to small baby roll.
Machine is equipped with 3 turret rewinding system,automatic gluing.

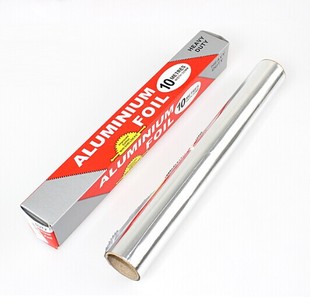

This machine can also rewind the aluminium foil,kitchen foil,household foil etc..
Video
Features:
1:PLC touch screen,operate easily,high production speed.
2:Automatic meter counting system,automatic stop when arrive the setting meters..
2: Magnetic powder tension brake system.
Data:
Machine name: Semi auto 3 turret baking paper rewinding machine
Machine model:PPD-SAF450
Mother roll width:max 450mm(adjustable)
Mother roll diameter:max 600mm
Mother roll inner diameter:3/6inch(option)
Mother roll loading way:Air shaft
Baby roll inner diameter: 35/38/40mm (option)
Baby roll length:max 150meters(adjustable)
Rewinding speed:max 600rpm/min
Voltage:220/380/415/450v,3ph(option)
Power:2.2 kw
