Automatic coreless thermal paper roll slitter rewinder, China factory price

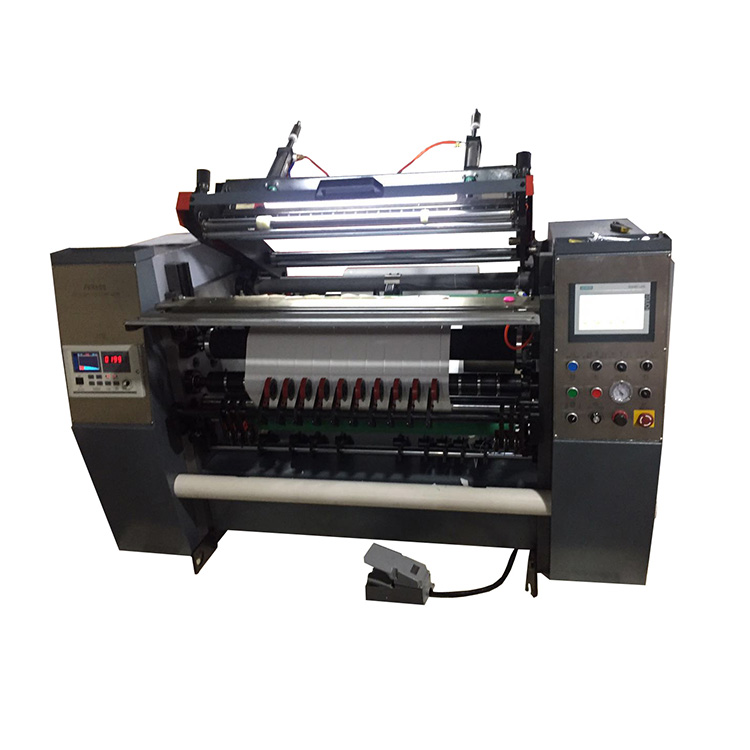

Automatic coreless thermal paper roll slitter rewinder

PPD-CPPS800

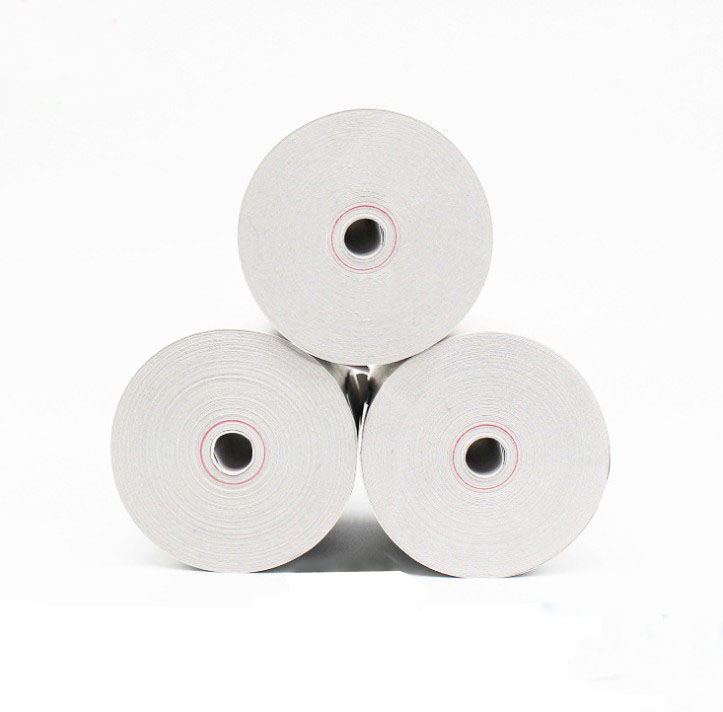

Automatic coreless thermal paper roll slitter rewinder is new designed model to slit rewind jumbo roll to small product thermal roll,ATM roll, pos roll,cash register roll, fax paper roll, lottery ticket roll, doctor exam, pressure sensitive labels, computer bill, medical record paper roll, credit card receipt paper roll etc. without core.
The product roll where the core is not required can reduce the production cost and make more profits.

Video

Features:

1:New designed coreless rewind shaft with stable concentricity

2:Siemens PLC touch screen HMI,operate easily.

3: Automatic jumbo roll loading system.

4:Automatic magnetic powder brake system.

5:Change the small accessories,this machine can do slitter rewinder with core.

Machine data:

Machine name: Automatic coreless thermal paper roll slitter rewinder

Machine model:PPD-CPPS800

Jumbo roll width:max 800mm(900mm option)

Jumbo roll diameter:max 1200mm

Jumbo roll inner diameter:76mm(3inch)

Jumbo roll loading method: Air shaft

Product roll inner diameter:coreless 8,12,18mm (option)

Product roll outer diameter:max 180mm

Product standard slit width:56mm/79mm(or 57mm/80mm)

Rewinding speed:max 150m/min

Voltage:220v,380v,415v,450v/3ph(option)

Power:4 kw
